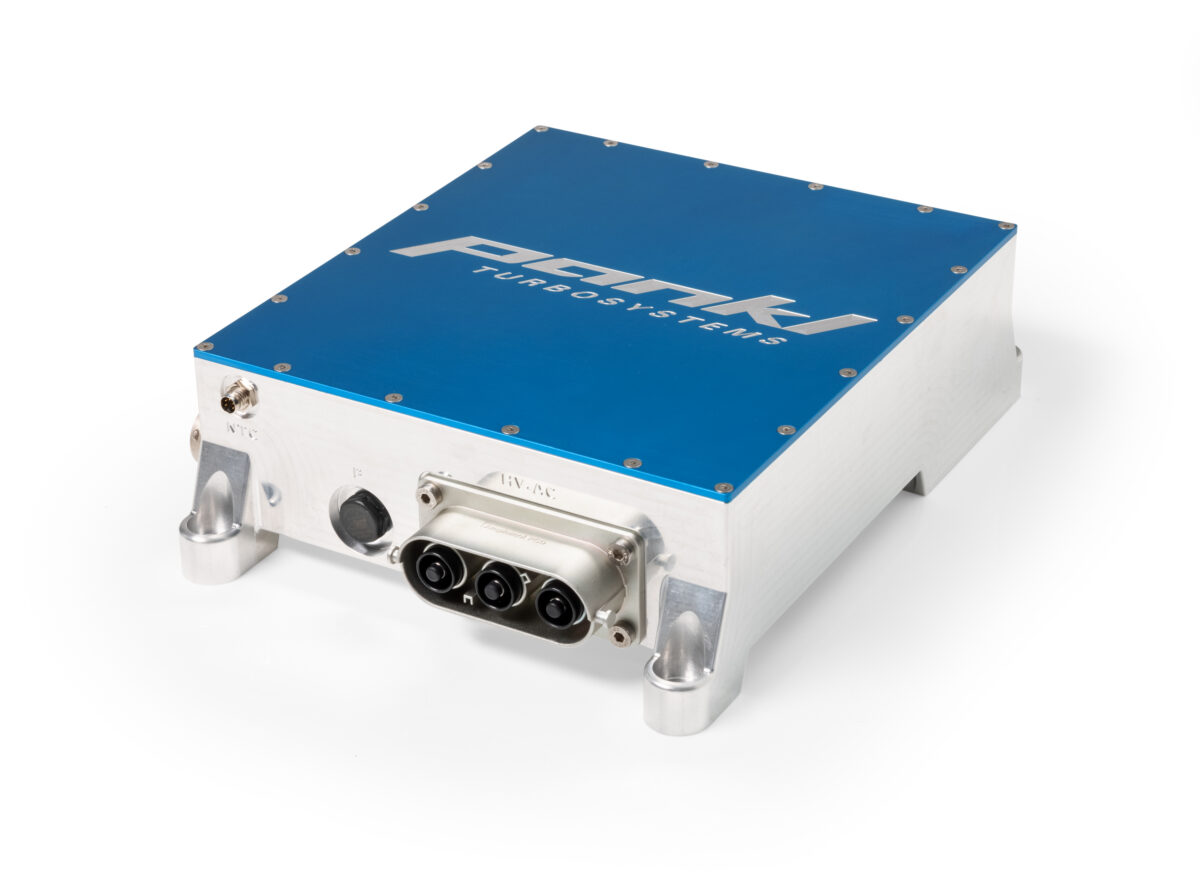

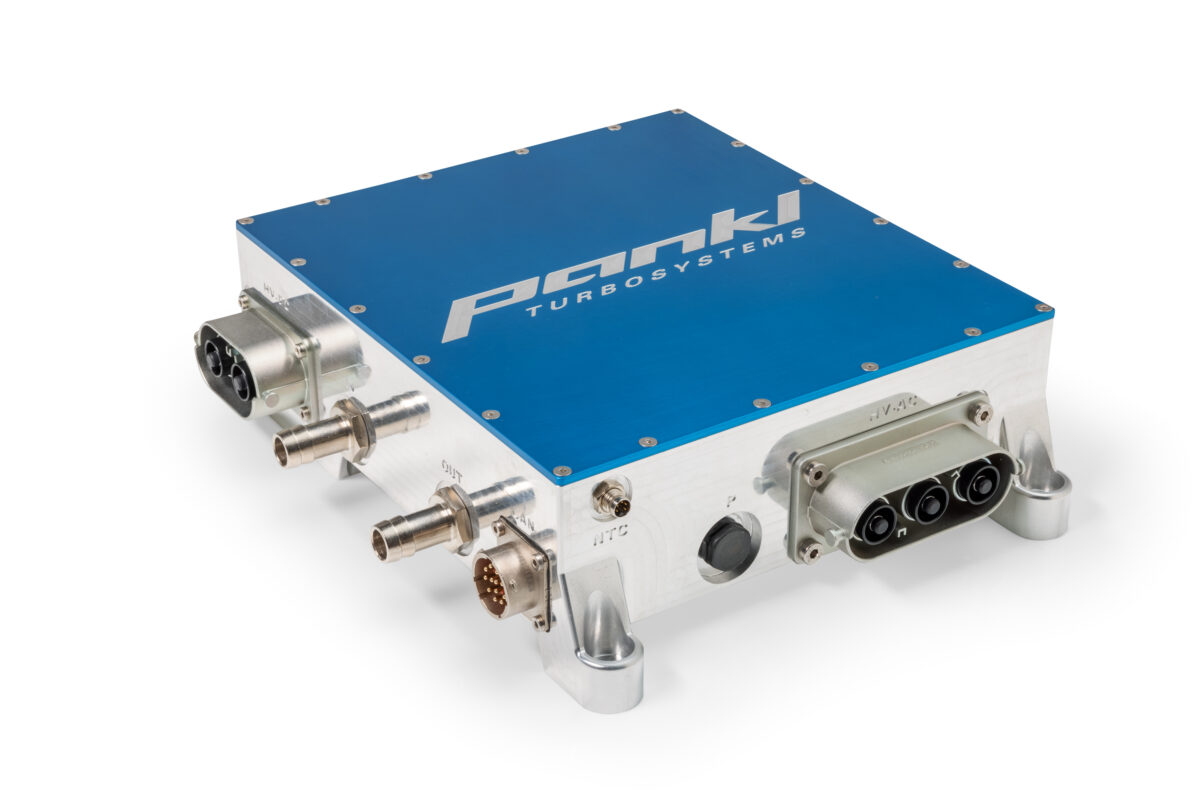

High Frequency Fuel Cell Inverter – Estoril HP – 800V

by Pankl Turbosystems GmbH

  • Up to 72 kHz switching frequency
  • Fuel cell inverter with sensorless motor control
  • Voltage measurement on DC-link
  • 3x motor current measurement and overcurrent-protection
  • Based on SiC-MOSFET power modules
Category: Country: Request for QuoteContact vendor Brand:
Add to compare

High Frequency Fuel Cell Inverter – Estoril HP – 800V

  • Optimized for use in high power hybrid and fuel cell applications
  • High power density
  • Ultra-wide operating voltage range
  • High current output
  • Prepared for use in harsh environments
  • Fuel Cell Inverter – Estoril HP is available in two variants:
    • Estoril HP – 400V
    • Estoril HP – 800V

Key features

  • Up to 72 kHz switching frequency for field oriented high-speed motor control
  • Sensorless motor control
  • Voltage measurement on DC-link
  • 3x motor current measurement and overcurrent-protection
  • Temperature monitoring for motor windings (up to 4 sensors NTC)
  • CAN interface, CAN FD on request
  • Based on SiC-MOSFET power modules
  • Liquid cooled
  • IP6K9K enclosure

Application areas

  • Electric vehicle charging
  • Residential power generation etc.

Contact us

  • Pankl Turbosystems GmbH is a high-tech custom solution provider in the field of innovative electrified and air management solutions. Please fill out the contact vendor form or RFQ form to contact the vendor.
Weight4.9 kg
Dimensions22 × 20 × 8 cm
Max Switching Frequency (Hz)

Channel Voltage Range (in V)

Nom Output Voltage (in V)

Operating Efficiency (in %)

Min Ambient Temperature (in °C)

Manufacturing Readiness (MRL)

Technology Readiness (TRL)

Technical datasheet

Flyer-Fuel Cell Inverter - Estoril

Technical datasheet

High Frequency Fuel Cell Inverter - Estoril HP_technical datasheet
