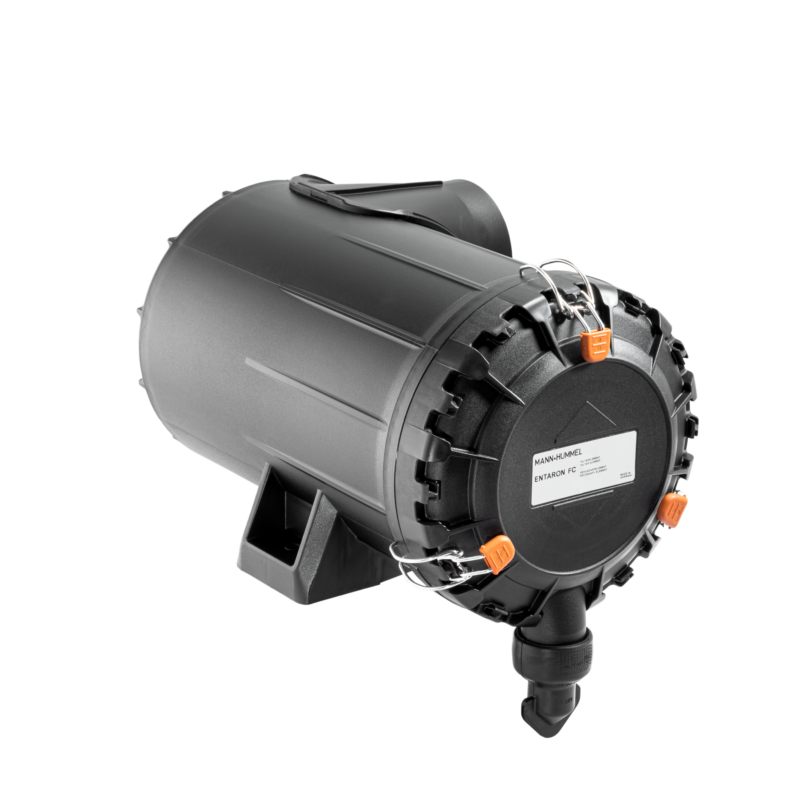

Cathode Filter Entaron FC 7.5
- The adsorption of critical gases from the cathode air can cause irreversible damage to the catalyst of fuel cells that leads to a loss of performance.
- The ENTARON FC 7. cathode air cleaner extends the service life of the fuel cell system by reliably protecting the catalyst from these gases.
- It also protects the system from channel blocking and wear by separating particles from the cathode air.
Key benefits
- Harmful gases are efficiently removed from the intake air, for example sulfur dioxide (SO2), nitrogen oxides (NOx) and ammonia (NH3)
- Air flow optimized system for low pressure loss and best air mass flow
- Flexible design options depending on customer needs
- Option to integrate further functions like sensors and acoustic measures
- Compact Housing Concept
Key features
- Well balanced gas adsorption performance for various gases due to in-house blended activated carbon media
- Increased adsorption power density utilizing an award-winning wound layer element design
- Optimized differential pressure while boasting advanced gas removal capacity
Operating parameters
- Efficiency of more than 80% @0.5 μm (150 m³/h) and more than 98% @ 5.0 μm (150 m³/h)
- Differential pressure: 2.1 mbar @ 100 m³/h; 5.8 mbar @ 200 m³/h; 10.6 mbar @ 300 m³/h; 16.5 mbar @ 400 m³/h
- Vertical and horizontal mounting position possible
- Protection against water
- Front servicing with comfort fasteners
Variants
Application areas
- Optional use for mobile or stationary fuel cell applications
- Protection of the cathode air path
Watch Mann+Hummel fuel cell products in action
By loading the video, you agree to YouTube’s privacy policy.
Learn more
By loading the video, you agree to YouTube’s privacy policy.
Learn more
Contact us
- MANN+HUMMEL is able to use its many years of experience in the area of filtration to meet the requirements for future mobility.
- Fill out the contact form and contact us today!
