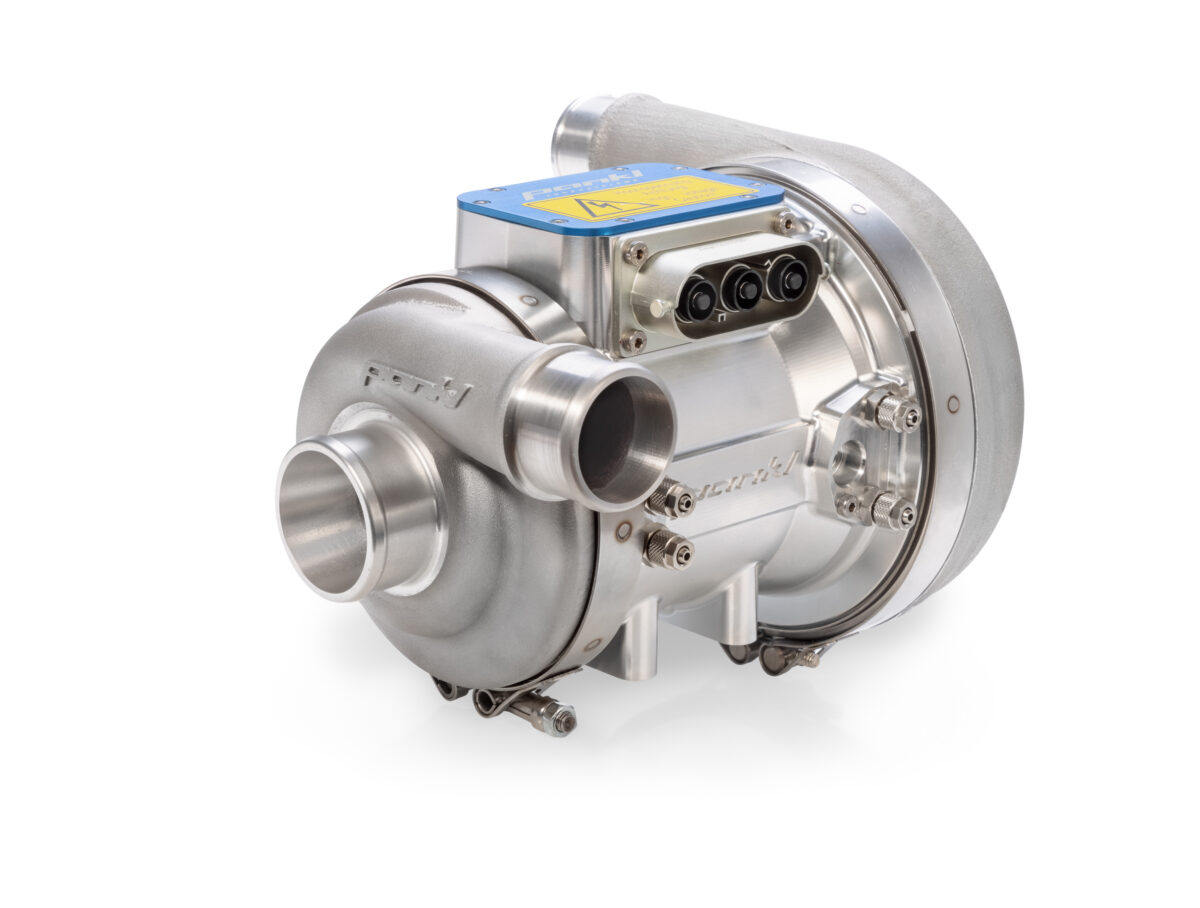

Electric fuel cell air compressor – FCAS2.73-45 – High Pressure
- Pankl Turbosystems GmbH (PTSYS) is a high-tech custom solution provider in the field of innovative electrified turbomachinery and air management solutions for automotive, aerospace and industrial applications.
- PTSYS’ leading-edge electrified solutions are fitted with high-efficiency permanent magnet synchronous motors and integrated power electronics.
- Pankl Turbosystems GmbH´s Fuel Cell Air Supply (FCAS) systems for next generation high-performance fuel cells from 30kW to over 300kW are recognized for their weight/size-to-performance ratio and are optimized for highly dynamic transient response and start-stop operation.
- The FCAS System is an electrically compressor for charging air into fuel cell stacks.
- By using our FCAS systems, the fuel cell performance, total cost of ownership and weight can be significant improved.
- Pankl Turbosystems offers two standard FCAS2 specifications that can be modified, if necessary, according to the customer´s requirements.
- FCAS2.64 – High Flow
- FCAS2.73-45 – High Pressure
- As a system supplier Pankl Turbosystems offers the compressor including state of the art technology inverters.
- Electric fuel cell air compressor offers high compressor stage efficiency of 78%
- Can be used for Nominal Voltage of 400V and 800V
Key features
- Compact and flexible design: Singe-Stage / Dual-Stage / Expander-Stage
- High efficiency Permanent-Magnet-Synchronous-Machine (PMSM)
- Electric fuel cell air compressor offers high compressor stage efficiency of 78%
- Maximum continuous power of 22kW PMSM
- Wide operating range
- Specification can be adapted to fit customer requirements
- Suitable for various applications
- Liquid cooling
- Aerodynamic oil-free bearing system
- High speed, high power density electric motor
- CAN 2.0 interface
- IP67 enclosure
Applications
- Fuel Cell Vehicles
- Stationary Power Systems
- Backup Power and Off-Grid Applications etc.
Contact us
- Pankl Turbosystems GmbH is a high-tech custom solution provider in the field of innovative electrified and air management solutions. Please fill out the contact vendor form or RFQ form to contact the vendor.
