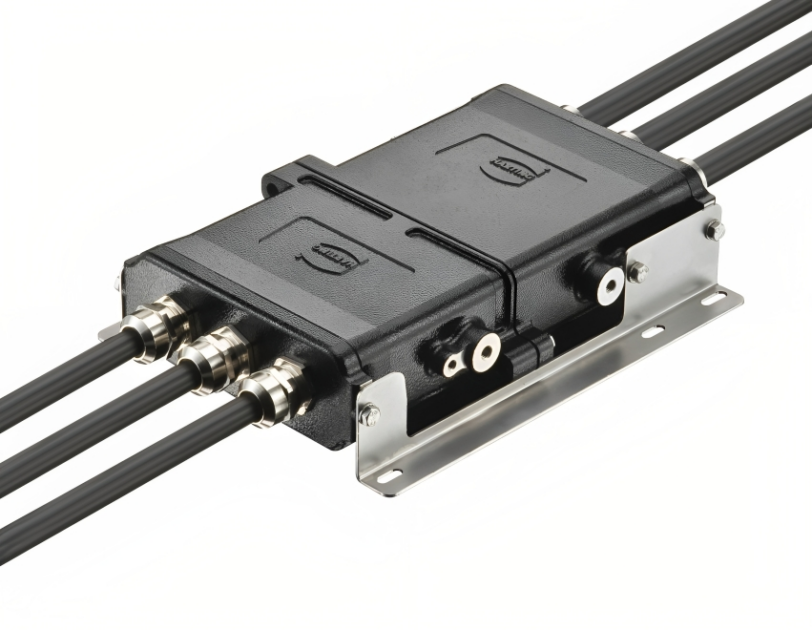

High Power Connectors for Hydrogen Applications (Han®-HC Modular)

by HARTING Technology Group

  • High power connectors for transmission of high current
  • High protection against electric shock
  • Limiting temperature: -40°C to +125°C
  • Protection degree: IP68, IP69K
  • Suitable for various Han® HPR hoods and housings of high protection degree
  • Customization possible for different applications
Category: Country: Request for QuoteContact vendor Brand:
Add to compare

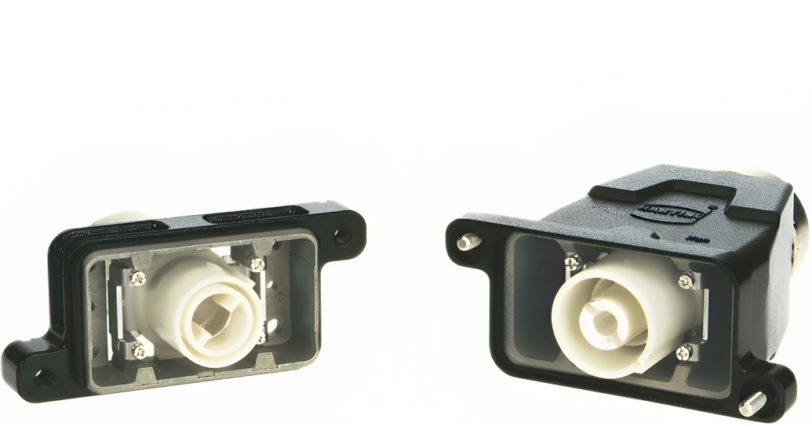

High power connectors for hydrogen applications (Han®-HC Modular)

  • The connectors are used for transmission of high current.
  • They have high protection against electric shock.

Connectors guide with all variants

  • Introduction
    • The modular high power connectors are available in large number of variants. For details see Han®-HC Modular product overview – click here.
    • The connectors are used for transmission of high current.
    • They have high protection against electric shock.
  • Features
    • Contacts for fine stranded wires
    • Low mating forces
    • Finger safe protection design
    • Suitable for various Han® HPR hoods and housings of high protection degree
  • Materials
    • Hoods & housings: Aluminum die cast, corrosion resistant
    • Frames: Stainless steel
    • Mounting frames: Aluminum die cast, corrosion resistant
    • Inserts: Polycarbonate
    • Crimp contacts: Copper alloy
  • Specifications
    • Approvals: EN 60664-1, IEC 61984, EN 50124-1, DNV GL
    • Rated Current: 250A, 350A, 650A
    • Limiting temperature: -40°C to +125°C
    • Protection degree: IP68, IP69K
    • Working life: ≥500 mating cycles

Application areas

  • Power transmission for electrolyzer and fuel cell system

Contact us

  • HARTING Technology Group is a global leader in supplying connectivity solutions for industrial technology. Interested? Please contact the vendor by filling in the contact vendor form or the request for quote form.
Max Ambient Temperature (in °C)

Min Ambient Temperature (in °C)

Compliant with

, ,

Ingress Protection Rating

,

Manufacturing Readiness (MRL)

Technology Readiness (TRL)

Technical Datasheet

High Power Connectors for Hydrogen Applications (Han®-HC Modular)_technical datasheet
