Kolibrik Fuel Cell Voltage Monitor CVM24P

Stackable fuel cell voltage monitoring (CVM) system designed for H2 fuel-cell stack research, testing and applications. CVM system can be used to prevent damage to individual cells, to monitor lifetime conditions, and to ensure optimal working conditions in applications. CVM24P module is ideal for testing and research purposes.

CVM24P module is designed as a precise automotive-ready solution with additional CAN bus for use mainly in hydrogen fuel cells and electrolyzers research, testing and applications.

CVM24P Details

  • 24-channels per board
  • Multiple boards can be daisy-chained
  • Very compact design, part of FC Stack Control System
  • Compatible with other Kolibrik.net modules
  • Default channel range ± 5V, can be extended
  • 24-bit sampling, RMS noise 10-100 μV
  • Accuracy 0,02% of range, + 0,05% of reading
  • Sample rate up to 500 sps
  • Communication buses
    • CAN bus, RS-485/XC2 (compatible with other Kolibrik modules)
    • USB (USB/RS485 converter in KMS-PWR module)
  • Stand alone or component of Compact Modular System and FC Stack Control System
  • Applications: H2 fuel-cell stacks and electrolyzer test stands, research and control systems, hydrogen technology, redox-flow batteries, etc.

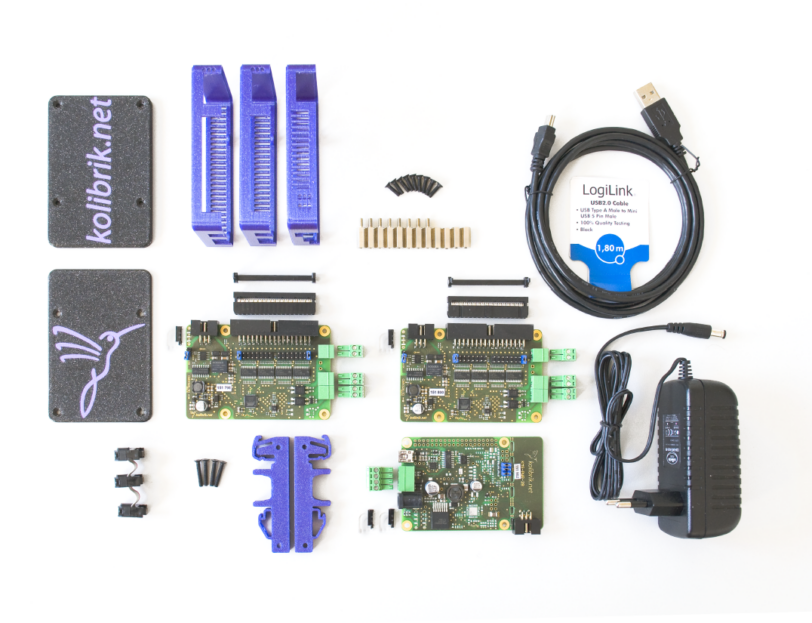

  • CVM-Kit48P – 2x CVM24P: 48 channels total, RS485/USB/CAN, 2x output, 2x input, Self-assembly kit
  • CVM-Kit120P – 5x CVM24P: 120 channels total, RS485/USB/CAN, 5x output, 5x input, Self-assembly kit
  • CVM-Ext24P – 1x CVM24P: 24 additional channels, 1x output, 1x input, Extension for self-assembly kit

Custom made sets

  • custom number of channels
  • optionally assembled into 3D printed enclosure
  • custom cables if requested
  • on demand modifications possible – connectors, enclosure, software functions, communication protocols, etc.
  • redesign for mass production if requested

Module board dimensions, mechanically compatible to Raspberry-like boards

Kolibrik CVM24P Dimentions

Contact us!

Dimensions8.5 × 5.8 × 1.3 cm
Max Power (in kW)

Min Ambient Temperature (in °C)

Max Ambient Temperature (in °C)

Channel Count

Electronic Control Interface

, ,


There are no reviews yet.

Be the first to review “Fuel Cell Voltage Monitor CVM24P”

Kolibrik CVM24P datasheet

Detailed information with specifications
