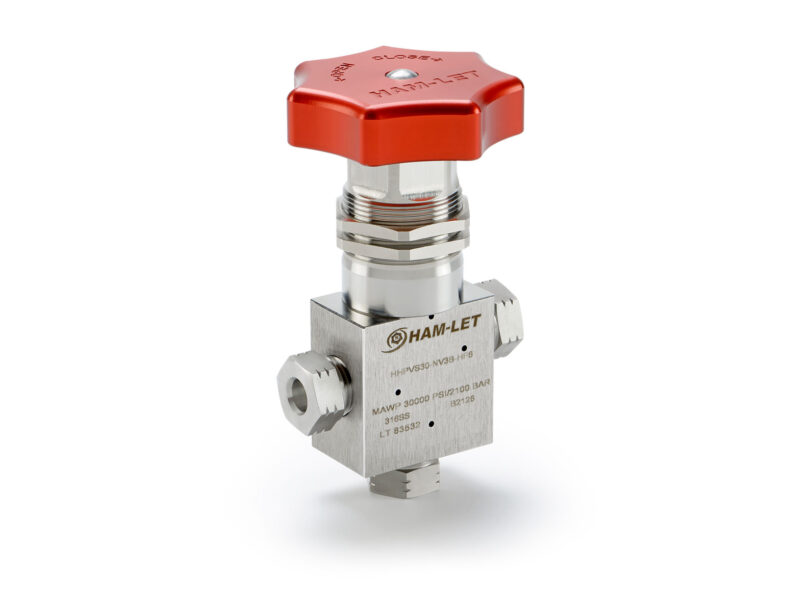

High Pressure Needle Valves (60k psi) – HHP Series

by UCT Fluid Solutions

  • New level high life cycle needle valve. Validated to 5 times higher than alternative brands.
  • Ergonomically formed handle wheel for easier operation
  • Maximum control with minimal drive backlash
  • High pressure needle valves enables smooth operation and lower torque
  • Live loaded packing for longer external leaking integrity
Category: Country: Request for QuoteContact vendor Brand:
Add to compare

High Pressure Needle Valves (60k psi) – HHP Series

  • The HHP products support the industry standard elevated pressures gas and liquid systems with working pressures up to 60,000 psi, in various industries like Oil & Gas, chemical and petrochemical, laboratories and research, water-jet cleaning and water-jet cutting.
  • HHP line can be provided in high tensile strength stainless steel and we consistently develop a variety of exotic materials and for sour gas applications.
  • As with all Ham-Let products, the HHP line is backed by Ham-Let’s commitment to the highest quality-control standards and skilled craftsmanship.

Key features

  • Connection type: cone and thread connection is available in 1/4’’, 3/8’’, 9/16’ sizes and for a pressure rating of 60,000 Psi
  • Tip stem: all high-pressure connection valves are with a non-rotating stem with Vee Tip as a default.
  • Materials: valve body is from 316L stainless steel with high mechanical properties.
  • Packing: PTFE packing is a default, suitable for working temperature from -10°C to 60°C
  • Actuators: Pneumatic actuators are available for all valve types.
  • Smooth operation and lower torque
  • Self-adjusting compensating packing for longer external leak integrity
  • Low friction and excellent chemical resistance of packing material for higher durability and longer life cycle
  • High flow up to Cv 0.7 provides maximal flow rate with minimal pressure drop
  • 100% factory tested

Application areas

  • Hydrogen storage
  • Compression systems
  • Fuel cell stations

Contact us

  • Please see the technical datasheet under downloads for mounting and connector configuration of high pressure needle valves (60k psi) – HHP Series. Fill out the contact vendor form to contact us today.
Max Pressure (in bar)

Manufacturing Readiness (MRL)

Technology Readiness (TRL)

High pressure Needle valves (60k psi) - HHP Series catalogue

Product datasheet

Send your inquiry today!

99% of all inquiries get answered within 5 days. Your inquiry will be sent immediately to the right person within the vendor organisation.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Request For Quote

      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      UCT Fluid Solutions

      UCT Fluid Solutions is a key global manufacturer and supplier of high-performance industrial flow control systems. Our broad portfolio covers the various needs of the hydrogen industry across industrial and automotive sectors, with dedicated valves, fittings, hoses, and custom solutions.

      Our Ball valves, Needle valves, and Manifolds series are certified to ISO 15848-1, ensuring the lowest fugitive emissions rates and maximum safety for hydrogen handling.

      Our Tube and Pipe fittings are EC79 certified for onboard vehicles, and undergo annual rigorous helium testing by a 3rd party lab to ensure our customers that we keep meeting the highest industry standards.

      Encouraging innovation and creativity, UCT Fluid Solutions have developed patented products and simplified engineered solutions to accommodate our customers’ demands.
