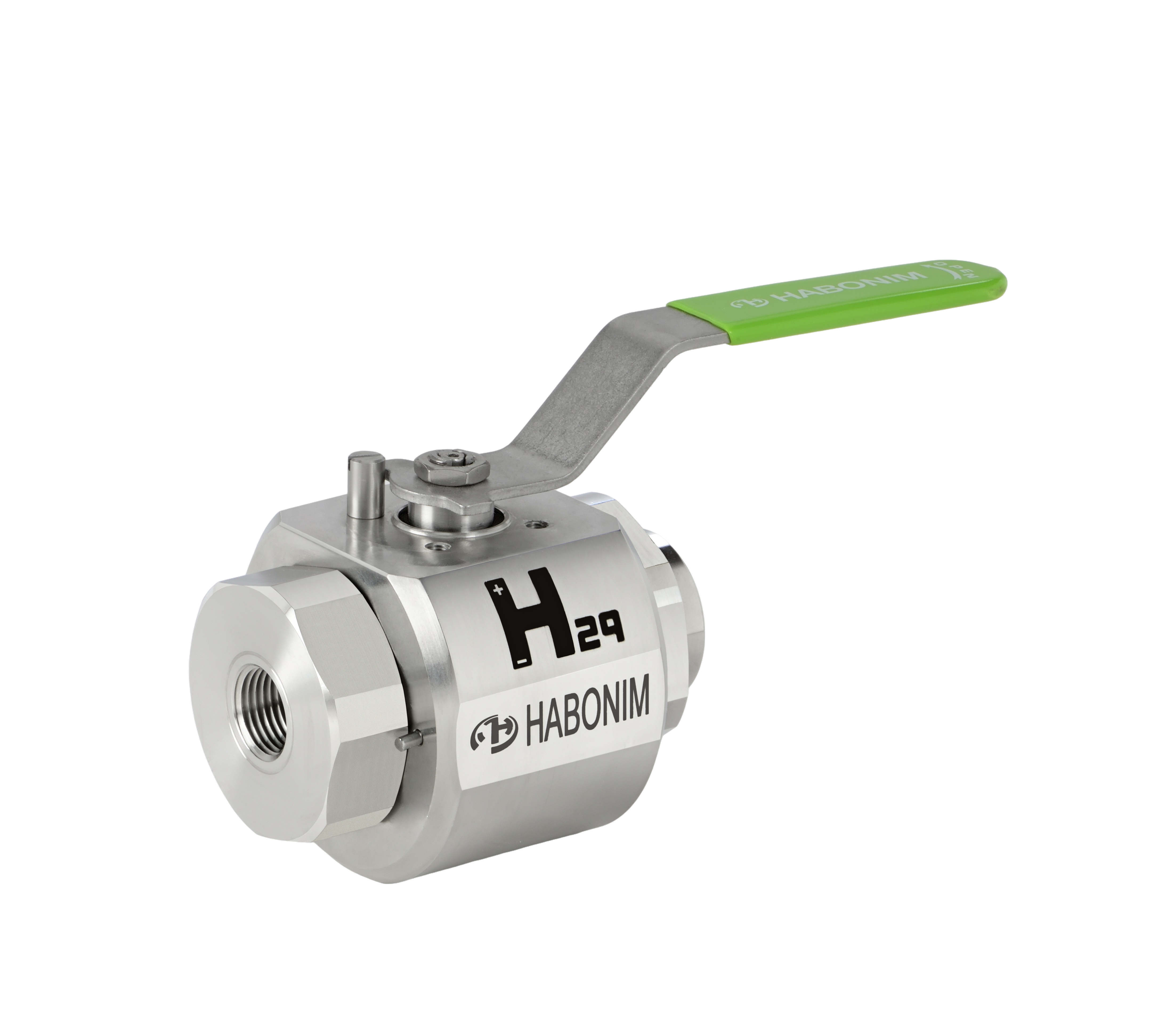

Hydrogen Service High Pressure Ball Valves - H29

HABONIM
Hydrogen Service High Pressure Ball Valves - H29
Hydrogen Service High Pressure Ball Valves - H29
Hydrogen Service High Pressure Ball Valves - H29
Summary

  • Hydrogen service high pressure ball valves with high reliability and integrity
  • Safe and long life
  • Maximum working pressure up to 1000 bar
  • Designed for low to very high pressures
  • Marine classification available on demand
  • Reliable for Hydrogen applications

Add to compare
Description Technical Specifications Downloads Vendor

Hydrogen Service High Pressure Ball Valves - H29

  • Habonim's hydrogen service high pressure ball valves are designed and tested to provide safe and durable use within diverse hydrogen application and address some leading industrial standards.
  • With decades of proven safe and long lasting use in hydrogen applications Habonim hydrogen service ball valves delivers reliability and integrity for industrial demanding applications.
  • Habonim special use valves are equipped with Total HermetiX integrity package for superior sealing, safety and environmental care.

Key features

  • Designed for high pressures
  • Shut-off or control use
  • High reliability and integrity
  • Safe and long lasting valves
  • Operation parameters:
    • Size: 1/4' to 1 1/2'
    • Maximum pressure 1,000 bar (15,000 psi) with TPED mark up to 700bar (10,000 psi)
    • Working Temperature: -40° C to 260° C (-40° F to 500° F)
  • Design parameters:
    • Threaded body
    • Automation-ready with standard ISO 5211 connecting plate
    • Total HermetiX integrity package with ISO 15848-1 and API641 emission standard certified design
    • Total HermetiX integrity package with ISO 10497 and API607 fire safe standard certified design
    • Double body sealing
  • Certifications:
    • Tested upto 700bar use (internal test with He)
    • TPED certified, up to 700 bar MWP
    • 100% shell & inline leak tested
    • Marine classification available on demand (DNV GL, LR, BV, ABS, KR, RINA and others)
  • Materials:
    • Stainless steel body and ends
    • All materials compatible for hydrogen use

Applications

  • Reliable for hydrogen industrial applications
  • Hydrogen refueling stations

Contact us

  • Habonim is a offering a full range of ball valves for hydrogen use. Interested? Please contact Habonim by filling in the contact request form.
Brand Habonim
Max Pressure (in bar) 1000
Compliant with ISO 10497, ISO 15848, TPED
Max Ambient Temperature (in °C) 260
Min Ambient Temperature (in °C) -40
Download
Habonim-Booklet-SpecialUse-Hydrogen-serviceball-valves.pdf
