Small Scale Hydrogen Refueling Station Nano Pro 70

by Haskel Inc.

  • The Nano Pro hydrogen refueling station offers standardized, cost effective and flexible solutions
  • ‘Plug and Play’ solution
  • Fueling method: dynamic cascade + top off
  • Suited to small low volume fleets
  • PLC control system
Category: Tag: Country: Request for QuoteContact vendor Brand:
Add to compare

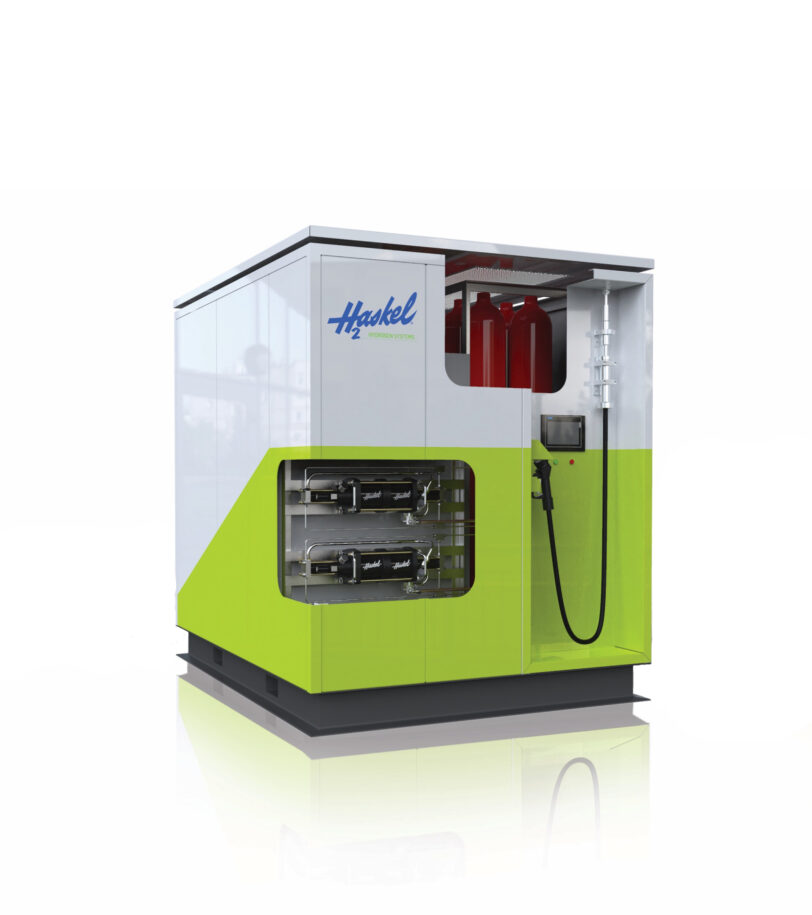

Small-scale hydrogen refueling station Nano Pro 70

  • Nano Pro is a small scale pneumatically operated hydrogen refueling station that can fuel to
    35 MPa or 70 MPa.
  • It can be supplied with optional storage to fill FCEV’s to 35 MPa in under 10 minutes with the option of a 70 MPa “top off”.
  • Nano Pro is a standalone ‘plug and play’ solution with built-in air compression and PLC functionality.
  • It is available in different models depending on the requirements: Nano Pro 35, Nano Pro 70.
  • It can accept hydrogen from a variety of sources.
  • It is ideally suited to small scale operations or demonstrations.

Key features

  • Efficient footprint
  • Ideal for small scale operations
  • ‘Plug and Play’
  • Air driven
  • PLC control
  • 70 MPa
  • Built-in storage
  • Suitable for office environments
  • Dynamic cascading
  • 70MPa Top-Off: <45min (~4kg)

Application areas

  • Ideal for demonstration projects or NPD applications
  • Material handling equipment
  • Light duty vehicles – fuel cell cars and vans
  • Small scale demonstration project for heavy duty vehicles – buses, trucks, trains or airplanes

Contact us

  • Haskel with more than 70 years of hydrogen experience, is your choice for hydrogen refueling station. Interested? Please contact the vendor by filling out the contact vendor form.
Dimensions220 × 190 × 230 cm
H2 output (in Kg/day)

Max Storage (in kg H2)

Max Pressure (in bar)

Manufacturing Readiness (MRL)

Technology Readiness (TRL)

Technical Datasheet

Small Scale Hydrogen Refueling Station Nano Pro

Send your inquiry today!

99% of all inquiries get answered within 5 days. Your inquiry will be sent immediately to the right person within the vendor organisation.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Request For Quote

      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Haskel Inc.

      For 75 years and counting, Haskel has been recognized as the world’s leading provider of high-pressure industrial gas and liquid handling equipment. Haskel hydrogen technology is safely and successfully used in a range of mission critical applications around the world every day - just as it has been for over two decades.
      We manufacture a full range of hydrogen handling equipment, including compressors, hydraulic and pneumatic-driven gas boosters, high-pressure valves and fittings and other system components. All of which use specific materials designed for hydrogen use based on pressure and flow requirements to address embrittlement issues metals face when exposed to a hydrogen environment.
      As the world’s leading provider of high-pressure hydrogen solutions, we have a team of experts who will work with you to provide the best solution for your chosen application.
