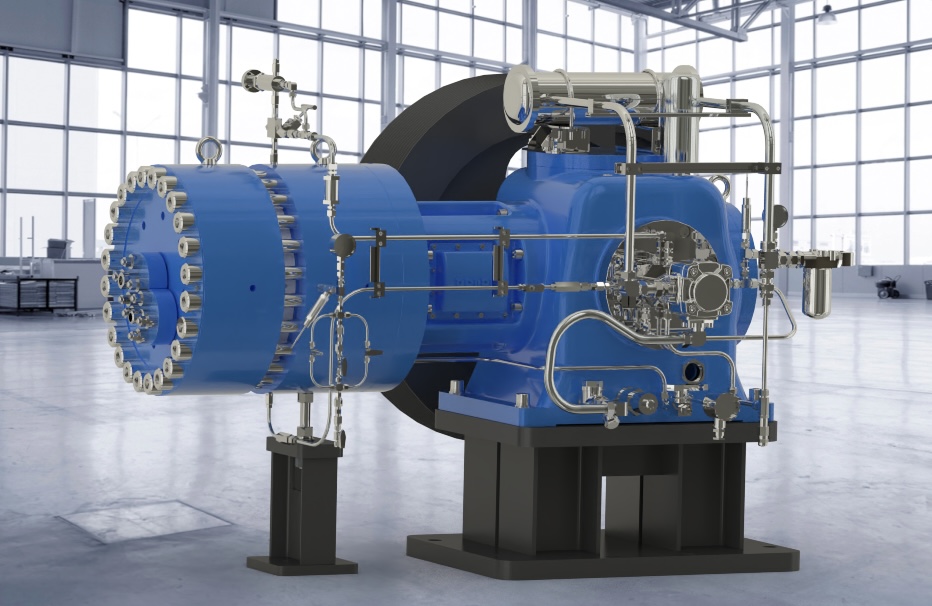

Hydrogen Diaphragm Compressor GM

by DONGDE INDUSTRIAL CO.,LTD

  • Hydrogen diaphragm compressor GM is designed for hydrogen refueling station
  • With CE certification
  • High quality with high cost performance
  • Discharge pressure is 45Mpa or 90MPa
  • Volume flow 750Nm3/ hour;
  • Customization available
Category: Tags: , Country: Request for QuoteContact vendor Brand:
Add to compare

Hydrogen Diaphragm Compressor GM – key features

  • The type line matches the membrane cavity to improve stress concentration and service life
  • Casting parts 3D forming, shorten the manufacturing cycle; digital, networked, and intelligent
  • Explosion-proof PLC control cabinet to realize both local control and remote start & shutdown.
  • Design different volumes of buffer tank according to different mold cavity volumes to make the airflow stable.
  • The service life of the diaphragm is more than 6000 hours, the air valve is more than 8000 hours
  • The disc type line is optimized, the type line matches the diaphragm deflection, improves the stress concentration, and improves the diaphragm life.
  • Bearing seat and box are integrated structure, pagoda type load-bearing design, reducing the weight without reducing the strength;
  • This hydrogen diaphragm compressor makes low noise below 85 dBA@1meter
  • Gas Compression without contaminating

Application areas

  • Hydrogen refueling station

Contact us

  • We have the right hydrogen diaphragm compressors for you and we can also customize them upon request. Fill out the contact vendor form to contact us.
Max Pressure (in bar)

Send your inquiry today!

99% of all inquiries get answered within 5 days. Your inquiry will be sent immediately to the right person within the vendor organisation.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Request For Quote

      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      DONGDE INDUSTRIAL CO.,LTD

      Dongde Industrial Co., Ltd is a leading Chinese supplier for the hydrogen energy sector, heavily invested in R&D and a state of the art manufacturing facility for the production of Diaphragm Compressors and Hydrogen Fuel Cell BOP such as Hydrogen Circulation Pumps, Air Compressors for Hydrogen Fuel Cells.
      Dongde has more than 300 Chinese patents, thanks to the crew of engineers with 5 holding doctorate degrees, who have been working very closely with global leading players in the hydrogen energy sector.
