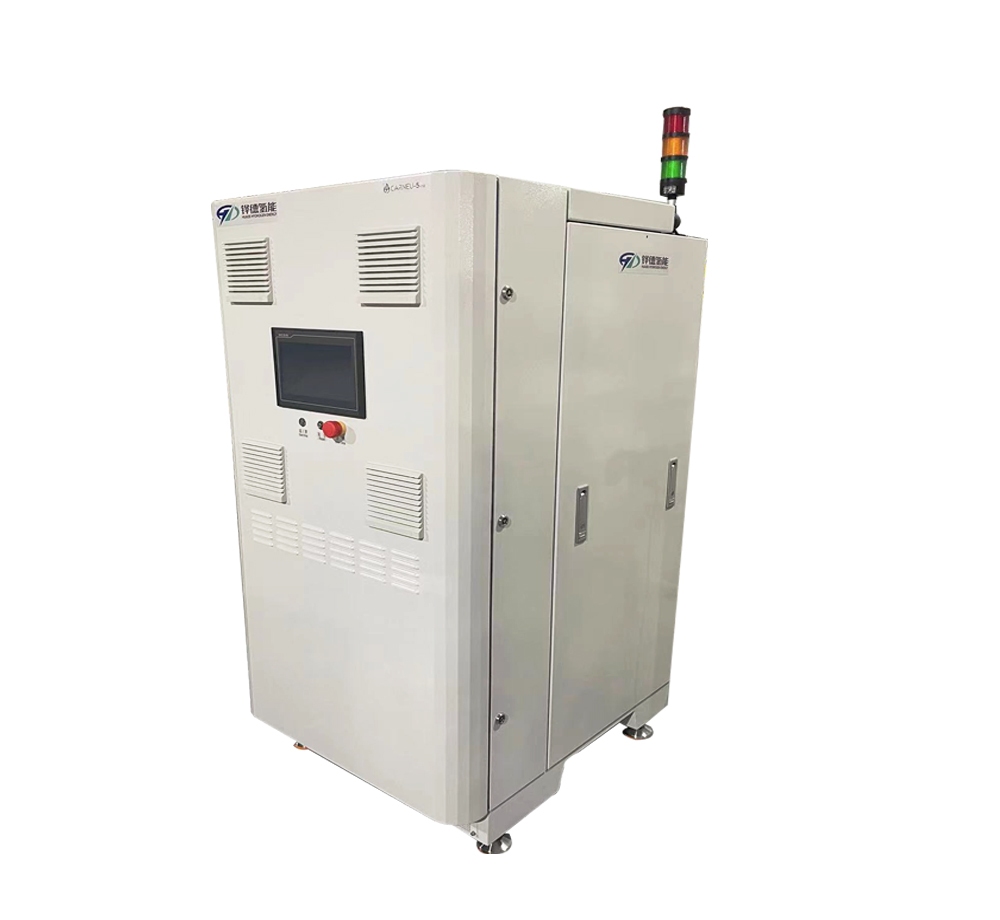

Pure Hydrogen Fuel Cell CHP System 5 kW CarNeu-5
- CarNeu-5 fuel cell CHP system is a low-temperature PEM fuel cell cogeneration system which has 5kW electrical power and at the same time 4.5kW thermal power in form of hot water.
- It is a turn key solution which means a customer can easily operate it by pressing a single START button and shut it down by the same button.
- It can be easily installed by simply inserting in the hydrogen pipe, water flow and return pipes, electrical cable and ethernet cable.
- The system has a modulation capacity from 40%-100%.
- It can be a perfect solution for matching any hydrogen source such as electrolysis.
- Besides, combined with hydrogen storage, it also can be used as backup power supply.
Key features
- Long service life with 40000＋running hours.
- Electrical efficiency: >47% at rated power and 53% at maximum power.
- Total efficiency: up to 92% at rated power.
- Flexible load regulation from 40% to 100%.
- Cogeneration: 5kW electrical power and also >4.5kW thermal power in form of hot water simultaneously.
- Extremely low noise.
- High safety, multi safety chains designed inside.
- No carbon emissions at all.
- Saves electricity and heating bills.
- Stable power supply.
- Modular design: easy operation and can be installed cascaded to larger systems.
- Good low-temperature performance: cold start from -20°C.
- Suitable for scenarios such as hydrogen energy storage project, residential power and heating applications.
Materials
Application areas
- Industrial plants
- Small commercial business
- Households
- Can be coupled with solar and wind energy systems for electrolysis
Use cases
- Project location: in Northwest of China
- An integrated project where multi application of hydrogen is implemented for photovoltaic-hydrogen production by electrolysis-refueling station-fuel cell CHP system.
