Fuel Cell System S1200 (120 kW)

by Loop Energy Inc.

  • Wide cruise range with up to 60% fuel efficiency
  • Low cost integration
  • Fuel cell system with wide power range of 17-83 kW
  • Factory preprogrammed system & flexible packaging
Category: Tags: , , Country: Request for QuoteContact vendor Brand:
Add to compare

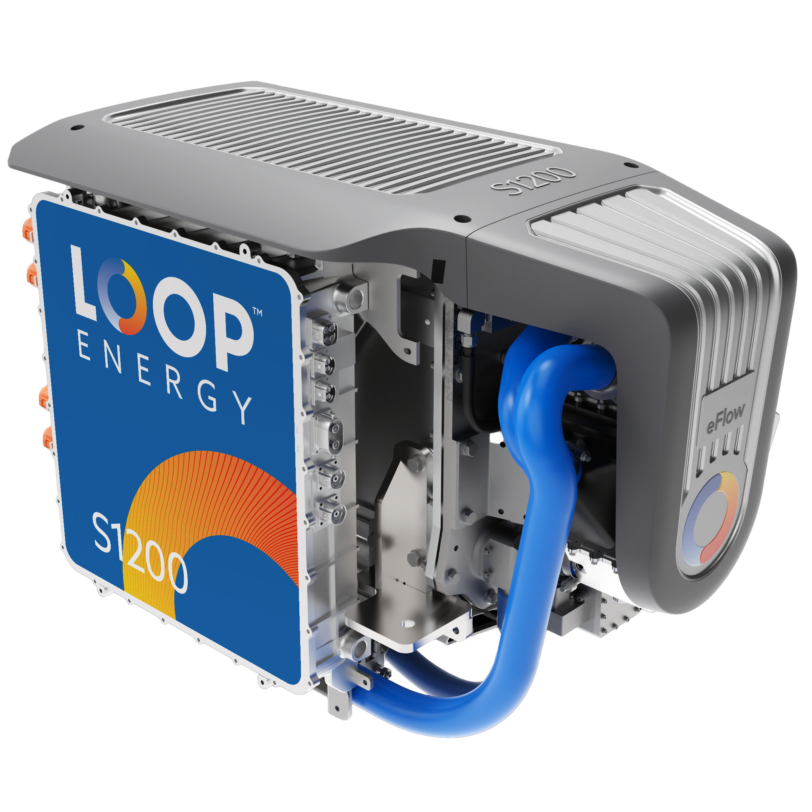

Fuel cell system S1200 (120 kW)

  • Enabling zero-emissions heavy duty vehicles via high fuel efficiency & wide cruise range.
  • S1200 sets a new standard in fuel efficiency with up to 20 kWh/kg NET energy output at the system level.
  • S1200 features a wide cruise mode power range that ensures fuel efficient operation for under just about any conditions.
  • S1200 is designed as a fully-integrated system that not only offers a plug-and-play solution. Delivered with flexible packaging with moveable components.
  • S1200 can be easily customized depending on the customers requirements.

Fuel cell System-S1200-Intro

Features

  • As a complete fuel cell system integrated with cooling system and DC-DC converter, S1200 offers OEMs a fully-integrated ready-to adopt solution.
  • Up to 120 kW peak power using next-gen bipolar plates.
  • Wide cruise range with up to 60% fuel efficiency.
  • Small foot print, flexible packaging, IP67 protection.
  • Dynamic response time over a wide power range.
  • Wide temperature range with freeze-start capability.
  • Low cost integration.

Fuel cell-System-S1200-design

Applications

  • Heavy duty vehicles
  • Fuel cell buses
  • Fuel cell trucks

Loop Energy’s eFlow™ delivers industry-leading performance and lowers total cost of ownership

  • With a focus on reducing the Total Cost of Ownership (TCO), eFlow delivers up to 16% higher fuel efficiency and up to 90% more peak power in the same size stack versus same class alternatives, providing higher payload capacity and extended operating range.
  • Testing also indicates that Loop Energy’s bipolar plate architecture delivers up to 10 times better current density uniformity than conventional bipolar plates, resulting in lower service and maintenance costs.
  • Through meticulous design and engineering, Loop Energy has achieved a fuel cell that increases performance, delivers lower TCO and gets vehicles on the road faster for its customers.

Loop Fuel cell module charts



Watch the video about our revolutionary eFlow technology

Total customer care program

  • Loop Energy has curated its most qualified ecosystem partners to ensure a seamless transition to a hydrogen-electric fleet.
  • In addition to our customer support and integration team, the Total Customer Care Program offers access to a network of tested, tried and trusted suppliers, ranging from hydrogen supply to fuel storage systems.
  • The program provides customers with peace of mind that the development of their hydrogen-electric vehicles is supported from every aspect.

customer care-Loop energy

Find out more

  • Visit the download section of this page to see all the documentation offered.
  • A more efficient way is to contact! Fill out the contact form and we will address your any questions you may have.

Contact us

  • Start your transition to a hydrogen-electric fleet today! Complete the form and a Loop Energy representative will be in touch with you.
Weight300 kg
Dimensions100.8 × 67.9 × 78.7 cm
Fuel

Type of Cooling

Max Power (in kW)

Max Ambient Temperature (in °C)

Min Ambient Temperature (in °C)

Max Current (in A)

Max Output Voltage (in V)

Min Output Voltage (in V)

Fuel Quality Grade

,

Electronic Control Interface

Compliant with

,

Brochure

S1200 Fuel cell system brochure
