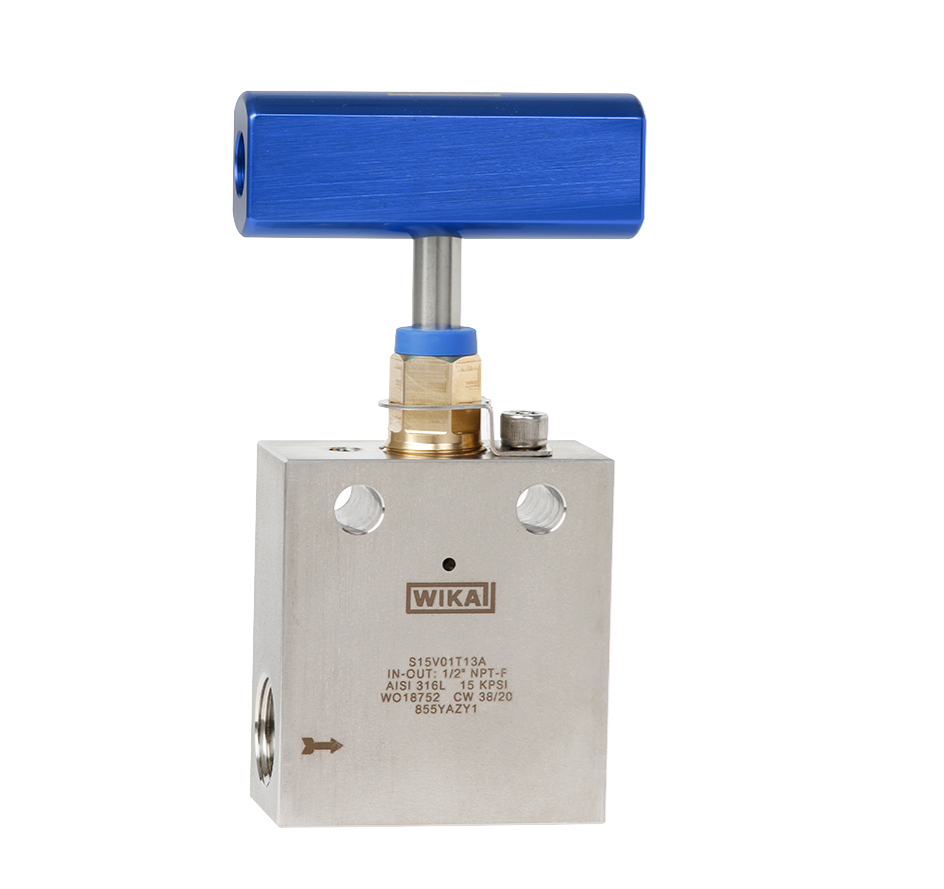

High Pressure Needle Valve HPNV

by WIKA Alexander Wiegand SE & Co. KG

  • For high-pressure applications of 15,000 … 60,000 psi [1,034 … 4,136 bar].
  • Low-wear design due to non-rotating spindle tip in the bonnet
  • Leak-tested tightness in accordance with BS6755 / ISO 5208 leakage rate A
  • The high pressure needle valve is particularly suitable for test benches and hydrogen refueling stations.
Add to compare

High Pressure Needle Valve HPNV

  • The model HPNV high-pressure needle valves have been developed for high-pressure applications of 15,000 … 60,000 psi [1,034 … 4,136 bar].
  • The valve is particularly suitable for control panels, where the space is restricted, or for test benches, where the space is restricted, for test benches or in hydrogen refueling stations.
  • The non-rotating valve spindle prevents seizing and scoring, even if the valve is rarely opened or only partially closed.
  • With the blow-out proof design of the valve, working safety is ensured, especially in applications with high pressure loading and frequent pressure cycles.
  • The valve can be fully opened/closed with only 5 turns.
  • The risk of unintentional loosening of the bonnet is minimized by a mechanical stop for the handle.
  • Quick assembly and disassembly of the handle is possible thanks to the self-centring system.
  • The valve design and high-quality sealing materials ensure long operating times and high tightness.

Key features

  • Low-wear design due to non-rotating spindle tip in the bonnet
  • Low torque and smooth operation of valve handle even at high pressure
  • Leak-tested tightness in accordance with BS6755 / ISO 5208 leakage rate A
  • Large selection of materials and configurations available
  • Customer-specific combination of valves and measuring instruments (instrument hook-up) on request

Materials

  • For hydrogen applications the following materials are used:
    • Valve Body: 1.4404 / 1.4401
    • Spindle Tip: XM-19 or 1.4404/1.4401
    • Sealing: PTFE glass filled

Applications

  • Hydrogen refueling stations
  • For test benches, hydraulic power packs, blow-out protection

Contact us

  • Interested? Please contact WIKA by filling in the contact request form.
Max Pressure (in bar)

Min Pressure (in bar)

Max Ambient Temperature (in °C)

Min Ambient Temperature (in °C)

Technical Datasheet

High pressure needle valve
