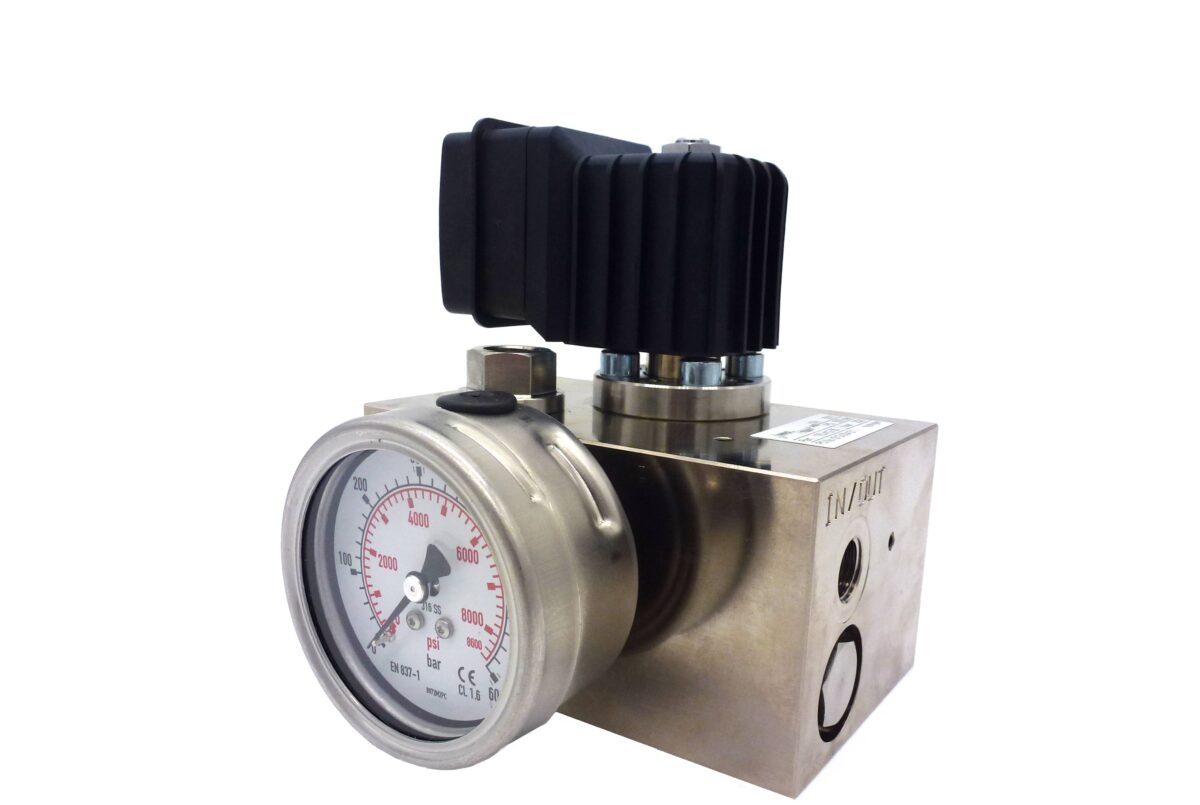

Hydrogen Bidirectional Solenoid Valve 500 bar

by HomePower

  • Valve type: Solenoid, Normally Closed, Bidirectional
  • Bidirectional valve to reduce piping and components
  • Up to 500 bar working pressure
  • G1/4” connections
  • Hydrogen bidirectional solenoid valve has integrated high pressure rupture disc for safety
  • Analog stainless steel pressure gauge
Add to compare

Hydrogen bidirectional solenoid valve 500 bar

  • The Bidirectional Solenoid Valve was designed for compact, straight forward and economic flow control
  • It handles input and output of hydrogen high pressure storage tanks up to working pressure of 500 bar
  • The chemically nickel plated valve block is 100% corrosion resistant
  • It is also optimized for the reliable management of hydrogen storage and cascade refueling systems etc.
  • An integrated certified REMBE® high pressure rupture disc (fail-safe performance) with negative temperature coefficient guarantees safety even in case of overpressure and fire
  • An analog stainless steel pressure gauge allows a fast tool-free pressure check

Key features

  • Valve type: Solenoid, Normally Closed, Bidirectional
  • Bidirectional valve to reduce piping and components
  • Integrated high pressure rupture disc for safety
  • Inlet, Outlet and Storage:  G1/4“ DIN/ISO 228-1
  • Valve block is 100% corrosion resistant
  • Analog stainless steel pressure gauge

Materials

  • Valve block material: Aluminium, Chemically Nickel Plated
  • Sealing: Stainless Steel Viton Ring (optional)

Solenoid Approvals

  • Type of protection:  II 2G Ex e mb IIC T4 Gb
  • EC-type examination:  PTB 11 ATEX 2027 X
  • Protection class: IP 65

Application areas

  • General hydrogen applications
  • For automated controlled hydrogen storage (bundles or tanks)
  • Hydrogen storage management

Contact us

  • HomePower offers you a total energy solution. Interested? Please contact the vendor by filling in the contact request form.
Dimensions11.7 × 11.8 × 13.1 cm
Max Pressure (in bar)

Max Input Voltage (in V)

Type of input current

Max Ambient Temperature (in °C)

Min Ambient Temperature (in °C)

Ingress Protection Rating

Manufacturing Readiness (MRL)

Technology Readiness (TRL)

Technical Datasheet

Hydrogen bidirectional solenoid valve 500 bar_datasheet

Send your inquiry today!

99% of all inquiries get answered within 5 days. Your inquiry will be sent immediately to the right person within the vendor organisation.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Request For Quote

      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      HomePower

      HomePower develops and implements scalable green hydrogen-based energy solutions for single-family homes up to neighbourhood solutions. The goal is to be able to store surplus photovoltaic energy seasonally over the year. HomePower also serves the B2B market with hydrogen-related components, especially for storage and fluid control.
