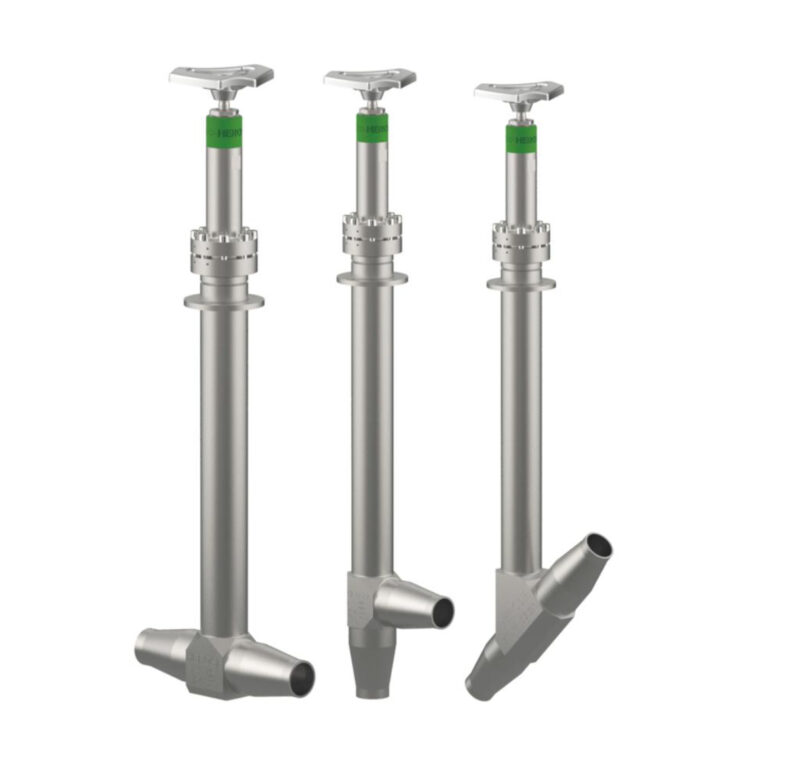

Cryogenic Globe Valve FullX – Type 11C01
- HEROSE cryogenic globe valves are available with a wide range of connections and material combinations.
- They can be equipped with additional functions, such as bellows seals for increased tightness requirements, or with a non-return function.
- With this combination, use of a separate valve can be eliminated.
- Cryogenic globe valves are available in sizes from DN10 to DN200 and secure pressures up to 50 bar, at operating temperatures of -255°C to +120°C.
Key features
- Stainless steel body and topwork, ” live loaded ” gland packing ” cleaned and degreased for oxygen service “
- Butt weld connection for stainless steel pipes acc. to ISO 1127
- Various options available:
- Bellow, top position (with or without monitoring)
- Bellow, bottom position (with or without monitoring)
- Check function
- Control function
- Throttle function
- Working temperature: -269°C / -452°F (4K) up to +80°C / +176°F (353K)
- Pressure rating: PN63
Materials
Applications
- Approved for hydrogen, air gases, vapours and cryogenic liquefied gases.
