Plastic Hydrogen ball valves -546pro

Plastic Ball Valves for Hydrogen Applications – 546 Pro

by Georg Fischer Rohrleitungssysteme AG

  • Pneumatic or electric actuated low pressure valves for hydrogen applications
  • Specific selection of plastic materials to avoid metal ion contamination of system.
  • Suitable for operation in the temperature range up to 120°C and 16 bar.
  • Light material plastic ball valves.
Category: Country: Request for QuoteContact vendor Brand:
Add to compare

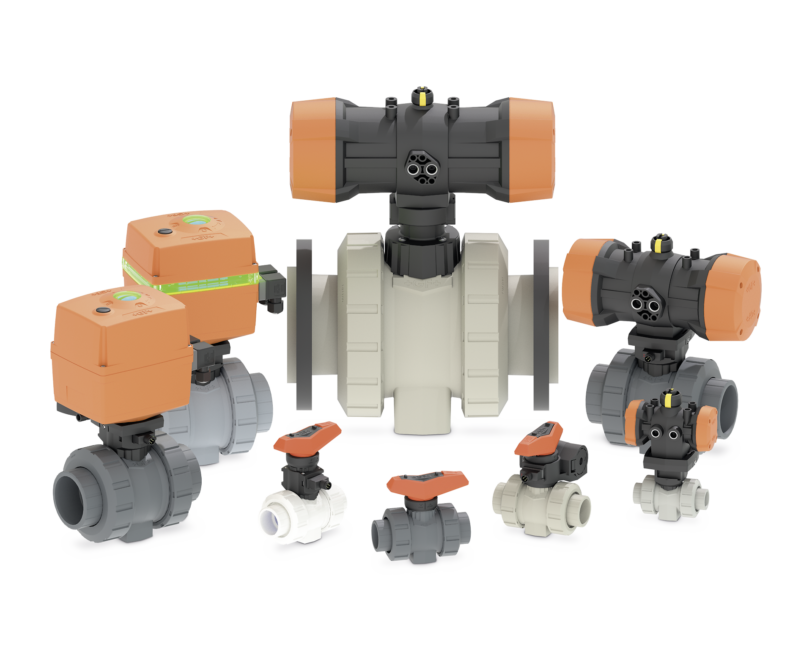

Plastic Ball Valves for Hydrogen applications

  • Pneumatic or electric actuated low pressure valves for hydrogen applications
  • Specific selection of plastic materials to avoid metal ion contamination of system
  • Wide range of materials available
  • Applications from a simple, manually operated shut-off valve to a fully automated ball valve

Key features

  • Ergonomic lever, lockable as standard
  • Quick label on request
  • Integrated tool for the union bush
  • Interface for flexible automation and accessories
  • Reinforced security break point in the stem interface
  • Double stem seals
  • Dynamic backing seal
  • Smooth spherical surface
  • Sawtooth thread suitable for plastics
  • Fastening system with integrated threaded bushes
  • Data matrix code
  • No metal ion leach-out
  • Light material
  • Corrosion free
  • Chemical resistance
  • Low CO2 footprint in comparison to metal
  • Materials:
    • PE
    • PP
    • PP-H
    • PVC-C
    • PVC-U
    • PVDF
  • Drive type:
    • Electric
    • Manual
    • Pneumatic

Applications

  • PEM electrolyser/ Water treatment, Cooling and Inlet
  • AEM electrolyser/ Water Treatment, Header and Hook-up to stacks
  • In approval for AEL electrolyser/ Water Treatment, media pipework
  • PEM Fuel Cell stationary/ Cooling-, Hydrogen- & air Loop
  • Marine methanol-powered fuel cell

Use cases

  • Completely replacement of metal pipings in an Electrolyser (AEL, AEM, PEM)
  • Completely replacement of metal pipings in an Fuel Cell (AEL, PEM)
  • Water treatment plants

Contact us

  • Georg Fischer ball valves meet every challenge and application, including simple water applications or complicated processes in the hydrogen industry. Interested? Please contact Georg Fischer by filling in the contact vendor form.
Max Pressure (in bar)

Max Ambient Temperature (in °C)

Manufacturing Readiness (MRL)

Technology Readiness (TRL)

Certification

DBI-GTI Certification
