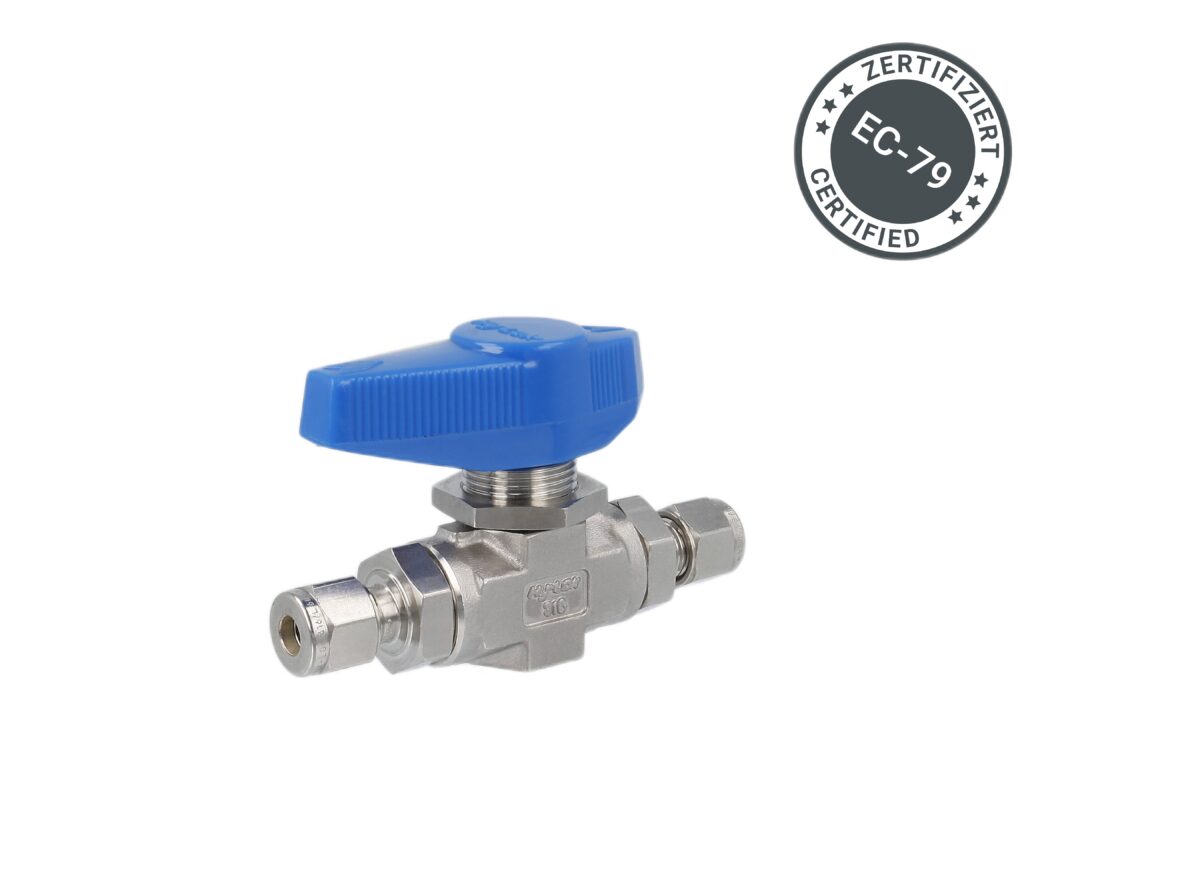

2-Way Ball Valves – Hy-Lok CGH2 Series
- The Hy-Lok valves, ball valves, fittings, filters etc. are the result of an ongoing optimisation process, driven by the findings from operation in various industries and laboratories and from innovative research.
- The Hy-Lok products are manufactured using the latest production techniques with minimum tolerances and hardened surfaces, and meet the highest standards of gas and fluid technology with respect to precision, reliability and safety.
- The Hy-Lok production process is certified in accordance with ISO 9001. All Hy-Lok valves undergo individual quality control, from inspections of the starting materials and after the various production steps, right through to the final acceptance.
Key features
- Made of high-grade stainless steel type 316/316L
- Proven quality through extensive test sequences according to (EG) No. 79/2009 and (EU) No. 406/2010:
- Salt spray test
- Durability test
- Hydraulic pressure test
- Double internal and external leakage test with compressed gaseous hydrogen
- Non-metallic materials tested according to (EG) No. 79/2009 and (EU) No. 406/2010 for hydrogen compatibility, aging by oxygen and ozone resistance
- Floating ball construction with PCTFE seats
- Spring-loaded packing design for adjustment of stem packing and low external leakage
- Stem packing made of PCTFE
- EPDM O-rings for body seal
- Available with Hy-Lok two ferrule tube fitting end connection for precision tubing with 6 mm, 8 mm, 10 mm and 12 mm outer diameter
- Applicable for a maximum working pressure of 350 bar (5,076 psig) @21°C
- Wide temperature range from -40 °C to +85 °C (-40 °F to +185 °F)
- Internal orifice up to 6.4 mm depending on end connection size
- Panel mount option over panel mount nut
- Full material traceability due to heat tracing code (HTC) on valve body
Applications
- Wide range of possible hydrogen applications
