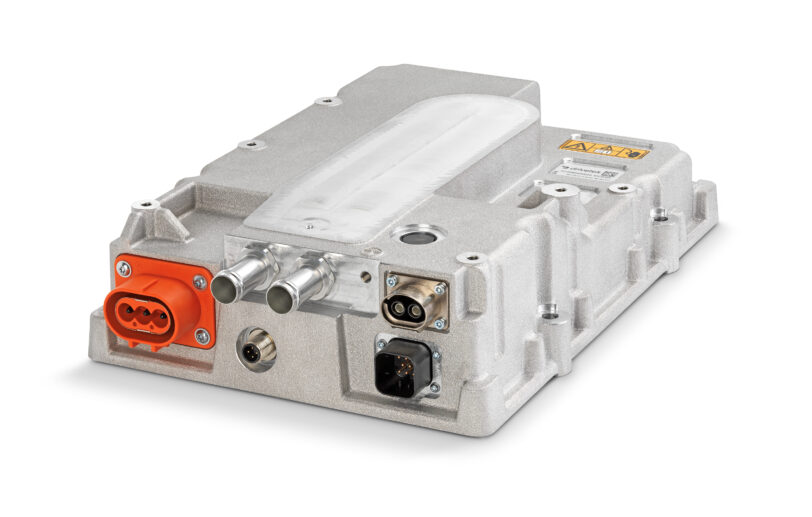

Multilevel Highspeed Inverter MLI 55 / 55+ 2.0

  • Multilevel Highspeed Inverter MLI 55 / 55+ 2.0 has DC supply voltage up to 850 V DC
  • Our inverter was developed for fuel cell air compressors and electric turbochargers
  • Nominal phase current up to 55 ARMS
  • Stator frequency up to 2,500 Hz
  • PWM switching frequency up to 46kHz
Add to compare

Working with Drivetek

Drivetek’s comprehensive systems expertise in electric drive technology and power electronics is based on their specialst knowledge of electrical machines with related inverter/DC-DC converters, including the associated software, along with the courage to change persepective. They have the expertise to combine single components into individual systems solutions.

Multilevel Highspeed Inverter MLI 55 / 55+ 2.0 descriptions

  • Turbo speed and system costs under control. Our multi-level technology enables us to keep very high motor and generator speeds of up to 150,000 rpm safely under control.
  • The control technique and high PWM frequencies reached result in considerably lower rotor losses in the electrical machine, thus leading to a significant reduction in system costs.
  • Multilevel Highspeed Inverter family undergoes double inspection in the production.

Key features

  • Compact design
  • High power density
  • Liquid-cooled, inlet temperature < 70°C (under full load conditions)
  • Interface to higher-level control system (CANopen/J1939)
  • Field-proven sensorless speed and torque control
  • Temperature monitoring interface
  • Digital Signal Processor with high control performance
  • Integrated EMI filter
  • DC voltage measurement and supervision
  • Three phase current measurements
  • Three phase voltage measurements
  • IP67 enclosure

MLI Technology

Drivetech MLI Technology

  • Drivetek has been applying multilevel technology to high-speed inverters (MLI) for e-motors spinning up to 180’000rpm since 2012. MLIs are used for air compressors, electric turbochargers and heat recovery applications
  • MLI technology provide cost advantage using standard IGBTs
  • Through the high PWM frequency and additional voltage level, lower pulsations of the magnetic field can be achieved, this leads to significantly lower rotor losses (eddy currents)
  • Due to the series connection of the switches, the voltage on each switch is only half of the DC Link voltage (e.g. 900V DC Link can be realized using a 600V class IGBT)
  • Multilevel technology allows significantly more complex control and error handling than 2-level architectures such: a) additional degrees of freedom, b) avoid “dangerous” power-off states in case of errors and c) control of the “N” point
  • To date, Drivetek has delivered several thousand units for a wide range of mobile fuel cell applications worldwide.
  • Drivetek has implemented all the tools to safely control multilevel inverters.
  • Drivetek’s proprietary QUASAR SW platform and Q-Control SW allow more than 300 parameters to be managed freely.

Application areas

  • MLI is developed for fuel cell air compressors and electric turbochargers
  • Cars
  • Industries
  • Electrical Grid connection
  • We include state of art testing in our production processes
  • Incoming inspection
  • Automated PCB function testing, more than 100 tests, 100% test coverage
  • Thermal burn-in test
  • SW Programming
  • EOL test
  • Electrical interfaces

Drivetek MLI 55 2.0 Electrical Interfaces

Contact us!

  • By pooling our experience, knowledge and technology, we are able to meet your requirements with precision.
Weight5.7 kg
Dimensions34.5 × 24.4 × 8.2 cm
Max Input Voltage (in V)

Min Input Voltage (in V)

Type of input current

Max Stator Frequency (in Hz)

Max Switching Frequency (Hz)

Electronic Control Interface

,

Type of Cooling

Max Ambient Temperature (in °C)

Min Ambient Temperature (in °C)

Ingress Protection Rating

Manufacturing Readiness (MRL)

Technology Readiness (TRL)

Reviews

There are no reviews yet.

Be the first to review “Multilevel Highspeed Inverter MLI 55 / 55+ 2.0”

Drivetek Multilevel Inverter 55 2.0 Datasheet

Product description

Drivetek Multilevel Inverter 55 Plus 2.0 Datasheet

Product description

Drivetek MLI 55 2.0 drawing

Product drawing
