High Power Inverter EMC150

Inverter with a power of up to 240 KW
Sixth gen. IGBT powerpack, up to 750V/900A peak phase current
Redundancy functions for safety-critical applications
Real – time parameter calibration and monitoring

Category: Inverters Country: Spain Request for Quote Contact vendor Brand: EPowerlabs

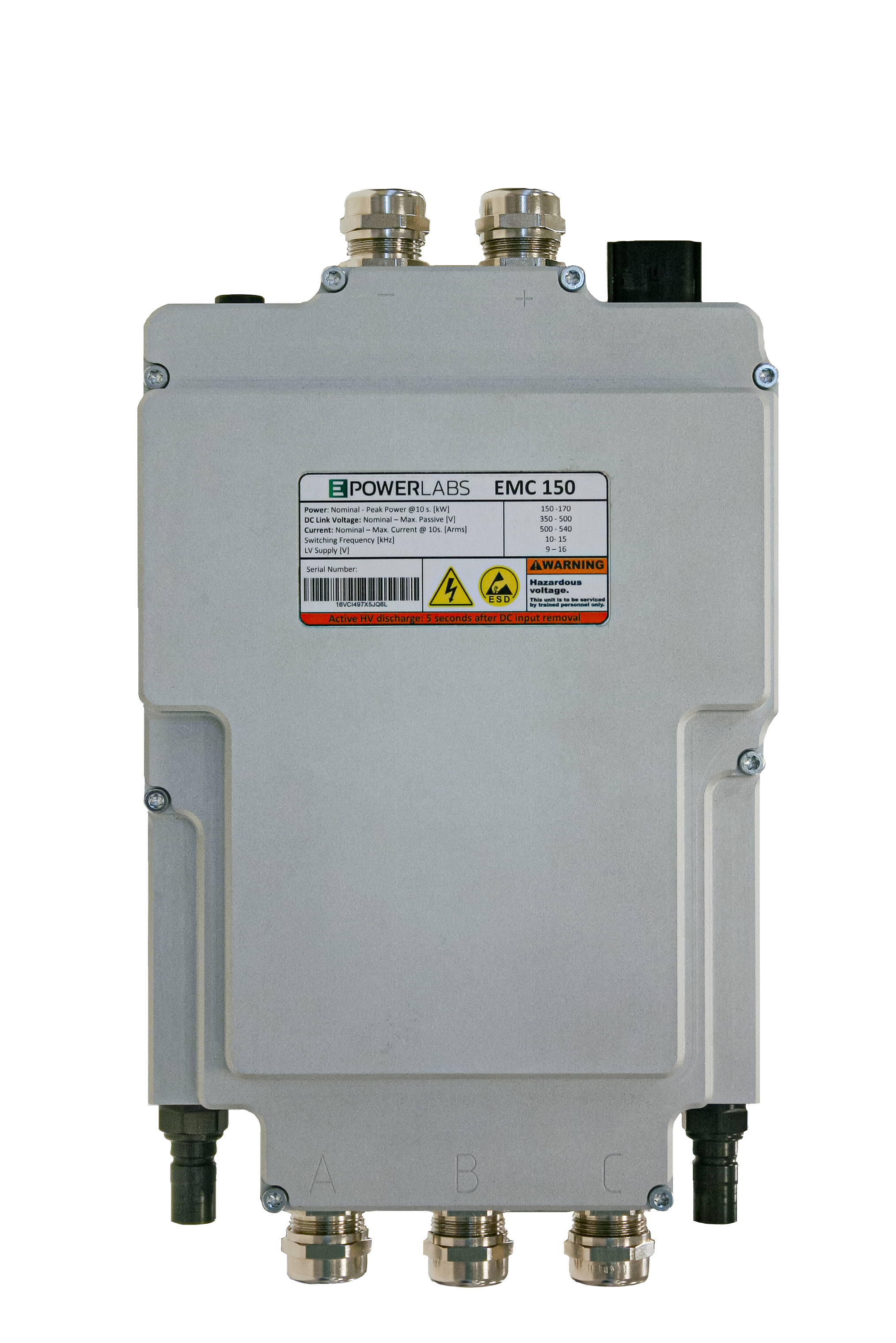

EPowerlabs EMC150 high power inverter for traction electric machines

The EMC150 is a high power density traction inverter that delivers up to 240kW in a small package for 400 V applications. It can be used for test bench operation, in vehicle applications (Heavy duty, marine, aeronautics), development activities or for on board pumps or auxiliary actuators

Main Features

Sixth gen. IGBT powerpack, up to 750V/900A peak phase current
Control board triple core @300Mhz (capable of reaching ASIL-D)
Redundancy functions for safety-critical applications
Real – time parameter calibration and monitoring
Application software enables sensors auto-calibration functions
Customizable control algorithms for each application
PC-based programming tools available
Self protection features
2x CAN 2.0 Port with adjustable baudrate
CAN database available (.dbc)

Contact us!

Not fitting 100% your application? Contact us for a customization feasibility study!

Weight	4.9 kg
Dimensions	20.3 × 30.8 × 6.5 cm
Max Output Voltage (in V)	750
Nom Output Voltage (in V)	400
Max Current (in A)	820
Max Switching Frequency (Hz)	12000
Max Power (in kW)	240
Nom Power (in kW)	150
Electronic Control Interface	CAN

Reviews

There are no reviews yet.

Be the first to review “High Power Inverter EMC150”

You must be logged in to post a review.

EPowerlabs ECM150 datasheet

Detailed information with specifications

Download File
