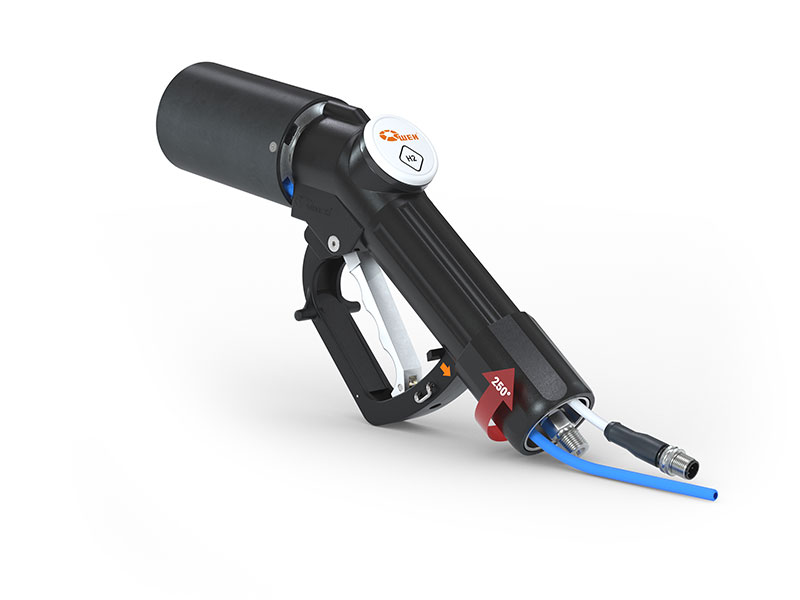

Fueling nozzle TK17- 70Mpa ENR (KTL)
- The WEH® TK17 H2 70 MPa ENR with exchangeable nozzle receiver (KTL data interface) was developed for refueling fuel cell cars with compressed hydrogen (CGH2).
- The fueling nozzle provides the same proven characteristics as the actual known TK17 H2 70 MPa.
- The IR data interface which is located at the front part of the fueling nozzle ensures proper communication between the vehicle and the fueling station thus achieving the optimum filling level.
- So far the complete fueling nozzle has had to be sent in for repair in case of damage or malfunction of the data interface. With this version of the TK17 H2 70 MPa, however, the data interface can now be easily exchanged by specially trained personnel on the spot and within a very short time. Downtimes are reduced.
- The continuous rubber protection offers optimal protection not only for the fuel cell electric vehicle and the front part of the fueling nozzle against damage, impacts and weather-related influences, but also for the operator against frostbitten hands.
- The new TK17 H2 70 MPa ENR is additionally equipped with a purging line, that allows purging with nitrogen during and after fueling process. This can prevent ingress of moisture and formation of ice crystals when filling with pre-cooled hydrogen. Removing the fueling nozzle from the receptacle is thus facilitated even in unfavorable climatic conditions.
- The internal coding for pressure range and gas type ensures that the WEH® TK17 H2 70 MPa ENR can be connected to the compatible WEH® Receptacles and also prevents the risk of confusion with natural gas
- Coding for pressure range / gas type
- Compatible to receptacle WEH® TN1 H2 70 MPa
- Easy operation
- Exchangeable nozzle receiver (ENR)
- Extremely high flow rate -> short filling times
- Hand grip with magnet
- High-grade materials
- Increased robustness
- Integrated purging line for nitrogen purging
- Left or right single-handed operation
- Plastic thermal protection
- Prepared for dispenser mounting with purging system
- Protection against impact and cold
- WEH® EASY-TURN swivel joint approx. 250°
- WEH® Jaw Locking Mechanism
- Fueling nozzle with KTL interface for H2 fast filling of electric / hybrid cars with fuell cells (FCV) at self-service fueling stations.
- WEH is your partner for hydrogen refilling. Contact us – we are looking forward to listen to your requirements.
