IE-SOAR 2.4kW Fuel Cell Power Module

Intelligent Energy Limited

  • Intelligent Energy provides a unique solution to extend flight times of UAVs  with its IE-SOAR™ 2.4kW module.
  • UAV flight times of up to 120 minutes are possible with our state of the art lightweight fuel cell power modules.
  • Key benefits of our modules: longer flight time, less downtime, increased productivity

Add to compare

IE-SOAR™ 2.4kW Fuel Cell Power Module

  • Intelligent Energy’s hydrogen fuel cell technology enables your UAV fleet to fly significantly longer.
  • IE-SOAR™ 2.4kW is our latest product for UAVs and has the highest output in the range. It is built on years of research and learning for maximum reliability and ease of integration.
  • Fuel cell technology is near silent, zero-emission and requires little maintenance.
  • Combine fast refuelling and longer flight times to maximise your productivity and increase return on investment.
  • The IE-SOAR™ 2.4kW is modular which means two modules can be connected in parallel to give an output of 4.8kW.

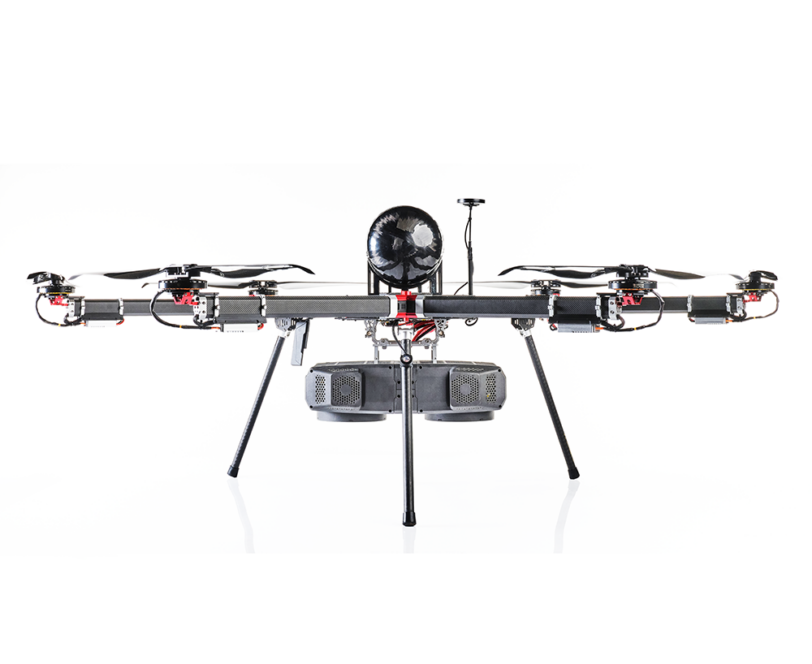

  • Designed for simple integration into fixed wing, VTOL and rotary wing aircraft.
  • Direct battery replacement.

Use of IE-SOAR™ module(s)

  • IE-SOAR products are modular and can be combined to create higher power systems.
  • They contain power system redundancy and single point failure tolerance for maximum safety and reliability.
  • Accurate fuel level monitoring.
  • CE and FCC certified.

IE-Info Key Benefits of Fuel cell UAVs

Use of hydrogen cylinders

  • Hydrogen is readily available worldwide from a large number of outlets.
  • Variety of certified cylinders to fit a wide range of applications.
  • Cylinder size can be specified based on payload and flight time required.
  • Custom cylinders can be commissioned for optimised flight time.

Watch our UAV fuel cell technology in action



Application areas of fuel cell powered UAVs

  • Survey and inspection
  • Search and rescue
  • High quality aerial photography
  • Precision agriculture
  • Parcel delivery
  • Warehouse inventory
  • Robotics
  • Portable power

Contact us

  • Intelligent Energy is your partner to design state of the art UAVs powered by fuel cells.
  • Contact us so that we can boost your projects with our experience!
Brand Intelligent Energy
Type of Cooling Air Cooled
Type of Fuel Cell PEM
Max Pressure (in bar) 350
Max Power (in kW) 2.4
Electronic Control Interface CAN, UART
Compliant with CE, FCC
Max Ambient Temperature (in °C) 40
Min Ambient Temperature (in °C) -5
Max Operating Altitude (in m) 5000
Intelligent Energy Limited Intelligent Energy is a fuel cell engineering business built on 30 years of PEM fuel cell development. It is focused on the development and commercialisation of its PEM fuel cell technologies for a range of markets including automotive, stationary power and UAVs. It is headquartered in the UK, with additional operations in the US, Japan, Korea and China.
