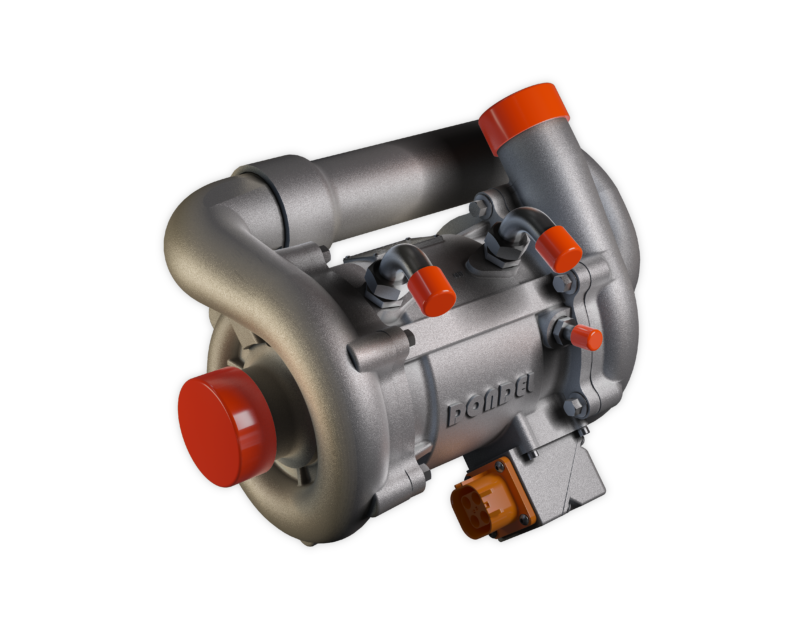

High Speed Fuel Cell Centrifugal Air Compressor DK800C

Dondel Industrial
High Speed Fuel Cell Centrifugal Air Compressor DK800C
Summary

  • DK800C fuel cell centrifugal air compressor with rated power of 22 kW
  • High speed air bearing with independent intellectual property rights
  • Oil-free operation
  • High efficiency with the aerodynamic model
  • Integrated intake and exhaust
  • Customization available

Add to compare
Description Technical Specifications Downloads Vendor

High Speed Fuel Cell Centrifugal Air Compressor DK800C - key features

  • The air bearing with independent intellectual property rights
  • Combined with the aerodynamic model to ensure high efficiency
  • The motor and controller have been tested and verified by IP67 and EMC
  • Over current and over temperature protection
  • Reliable over-speed test
  • Fault recording function on the controller
  • Operating humidity range 0-95%

Performance diagram

Dondel DK800C fuel cell centrifugal air compressor performance

Application areas

  • Hydrogen fuel cell vehicles, such as logistics vehicles, cold chain vehicles, buses, trucks, commercial vehicles, etc.
  • Hydrogen fuel cell power generation industry

Project cases

  • Multiple bus companies in China
  • Logistics vehicles
  • Trucks
  • Cold chain vehicles

Contact us

  • We have the right fuel cell centrifugal air compressor for you and we can also customize it upon request. Fill out the contact vendor form to contact us.
Brand DONDEL INDUSTRIAL
Max Rotational Speed (in rpm) 90000
Max Power (in kW) 130
Ingress Protection Rating IP67
Manufacturing Readiness (MRL) 10
Technology Readiness (TRL) 9
Max Ambient Temperature (in °C) 60
Min Ambient Temperature (in °C) -30
Max Ambient Humidity (in % r.H.) 95
Dondel Industrial

Dongde Industrial Co., Ltd is a leading Chinese supplier for the hydrogen energy sector, heavily invested in R&D and a state of the art manufacturing facility for the production of Diaphragm Compressors and Hydrogen Fuel Cell BOP such as Hydrogen Circulation Pumps, Air Compressors for Hydrogen Fuel Cells. Dongde has more than 300 Chinese patents, thanks to the crew of engineers with 5 holding doctorate degrees, who have been working very closely with global leading players in the hydrogen energy sector.
