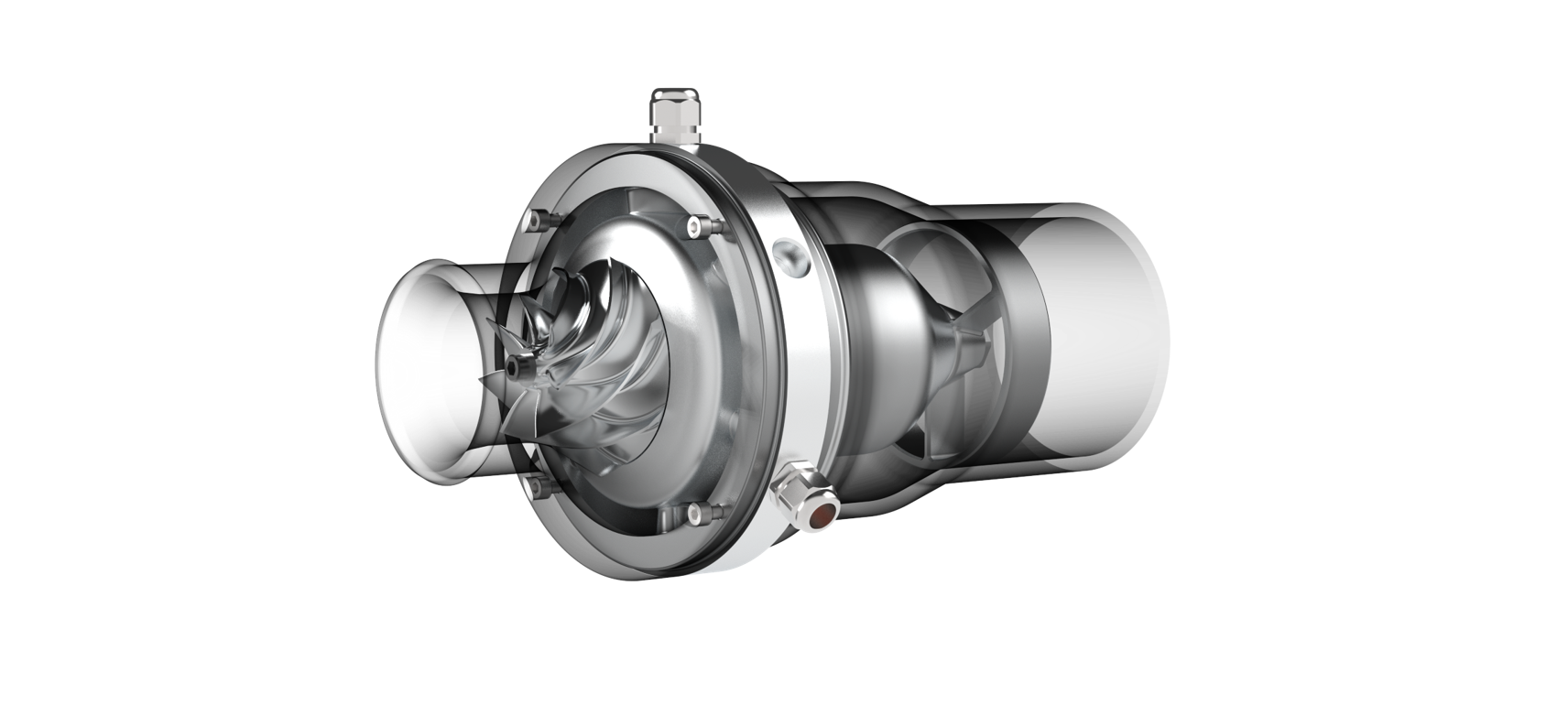

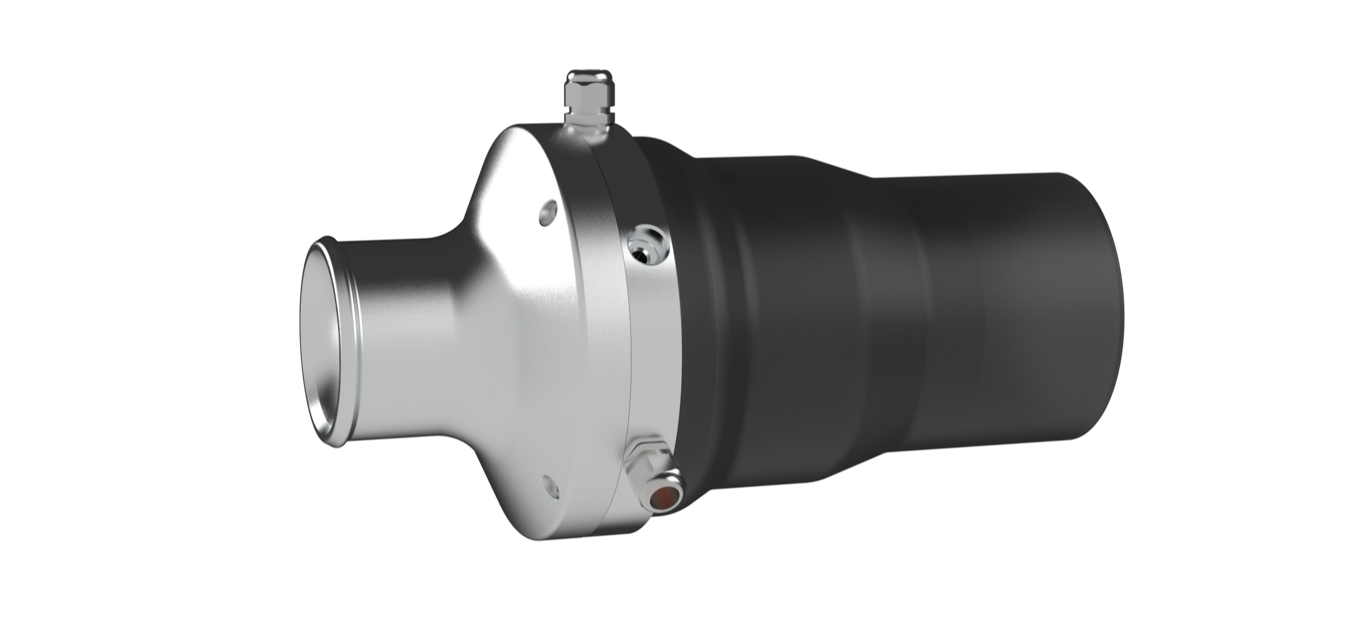

Fuel Cell eCompressor - Axial Flow type 25 kW

Fuel Cell eCompressor – Axial Flow type 25kW

by Sprintex Ltd

  • Fuel cell eCompressor with rated power of 25kW
  • Single stage compressor with aerodynamic efficiency to >80%. 10% more efficient than a 2-stage compression layout.
  • Axial flow type, designed especially for high flow demands.
  • High efficiency up to peak 76% (controller incl.)
  • Highest power density level in the industry. 25kW compressor weighs <7.5kg, with motor electromagnetic efficiency >98% in high power zone.
  • Customization available
Category: Country: Request for QuoteContact vendor Brand:
Add to compare

Fuel Cell eCompressor – Axial Flow type 25kW

  • More Efficient Fluid Dynamics: Mixed flow type impeller with axial vaned diffuser. Aerodynamic efficiency up to 82%, provides the coolest air boosting possible.
  • Simpler System: Effective forced air-cooling design. Easier integration and smaller package than conventional radial centrifugal compressors.
  • More reliable: Unique compressor thrust force balancing design extends the rolling element bearing life beyond 15,000hours, maintenance free.

Key features

  • More compact design
  • Simpler system
  • More reliable system
  • Lower cost
  • Higher efficiency
  • Flexible voltage input

Fuel Cell eCompressor - Axial Flow type - Performance Map

Application areas

  • Fuel cell stationary power supplies, or other industrial applications.

Contact us

  • Sprintex has the right fuel cell eCompressors for you. Fill out the contact vendor form or RFQ form to contact the vendor.
Weight7.2 kg
Max Power (in kW)

Max Input Voltage (in V)

Min Input Voltage (in V)

Operating Efficiency (in %)

Max Rotational Speed (in rpm)

Max Mass Flow (in g/s)

Max Ambient Temperature (in °C)

Min Ambient Temperature (in °C)

Type of Bearing

S26 Axial Flow type 25 kW Datasheet

Product Datasheet

Download File

Send your inquiry today!

99% of all inquiries get answered within 5 days. Your inquiry will be sent immediately to the right person within the vendor organisation.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Request For Quote

      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Sprintex Ltd

      More efficient, more reliable, more power dense- a perfect solution to your fuel cell applications.
      Sprintex Ltd, headquartered in Perth, Australia, is a company with more than 40 years of history as a professional manufacturer in the compressor industry. We develop and manufacture eCompressors from 1.5kW to 40kW to provide full coverage of boosting power for the fuel cell industry. We also provide flexible configurations like dedicated/integrated controller, single stage with an optional expander, water-cooled/air-cooled, air bearing/ball bearing options to achieve your needs.
