HC.AIR Connector for Hydrogen and Fuel Cell Systems

by HENN Connector Group

  • High quality connectors for air circuit in hydrogen and fuel cell systems.
  • 100% traceability with Data Matrix Code
  • Low assembly and disassembly forces
  • Protection against disassembly and single-sided engagement
  • Low system and process costs
  • Complies with VDA standards
Add to compare

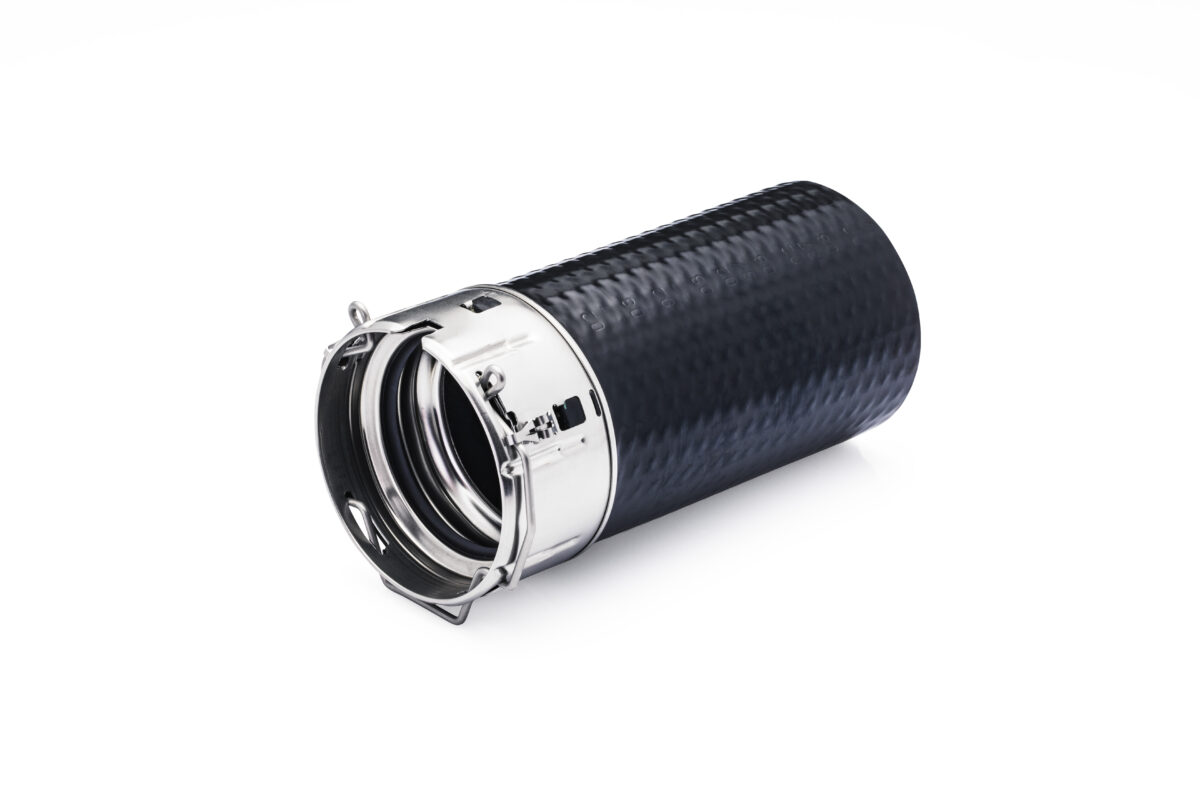

HC.AIR connector for hydrogen and fuel cell systems

  • HC.AIR connectors are charge air connectors that comply with VDA standard spigots.
  • HC.AIR connectors have been in serial production since 2018 as a further development of the HC+.
  • Due to their robustness, low assembly forces and high quality, they are increasingly replacing conventional clamped connections within the automotive industry.
  • HC.AIR connectors are manufactured as one stainless steel part, which provides stability and excellent corrosion properties.
  • The manufacturing process is fully automated and monitored.

By loading the video, you agree to YouTube’s privacy policy.
Learn more

Load video

Key features

  • Materials:
    • Connector: 1.4301 (AISI 304)
    • Support ring: 1.4016 (AISI 430)
    • Spring clip: 1.4310 (AISI 301)
    • Spring clip cover: 1.4310 (AISI 301)
    • Sealing element: AEM, FKM
  • Temperature range:
    • AEM: -40 – 160°C (180°C, 3h)
    • FKM: -20 – 240°C (245°C, 3h)
  • Pressure range:
    • 0.6 – 6.5 bar absolute


  • Air circuit

Use cases

  • The biggest 36 Automotive OEMs rely on HENN’s connection systems (GM, Daimler, BMW)

Contact us

  • Interested? Please contact the vendor by filling in the contact request form.
Max Ambient Temperature (in °C)

Min Ambient Temperature (in °C)

Max Pressure (in bar)

Min Pressure (in bar)

Manufacturing Readiness (MRL)

Technology Readiness (TRL)

Send your inquiry today!

99% of all inquiries get answered within 5 days. Your inquiry will be sent immediately to the right person within the vendor organisation.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Request For Quote

      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      HENN Connector Group

      As a top global player, we develop highly innovative connection systems. With our couplings for fluids, air and gases made of metal and plastic – manufactured using deep drawing, injection molding, turning/milling or additive manufacturing processes – we hold over 200 patents in 16 different countries.

      In the course of the EU-funded project HyTechonomy, we evaluated our couplings for hydrogen applications inside and outside of automotive applications and can now offer proven products for any circulation system (air, water and hydrogen).

      What drives us? Our mission to make great things happen through connections. With progressive technology, outstanding quality, excellent customer service and one common goal:
